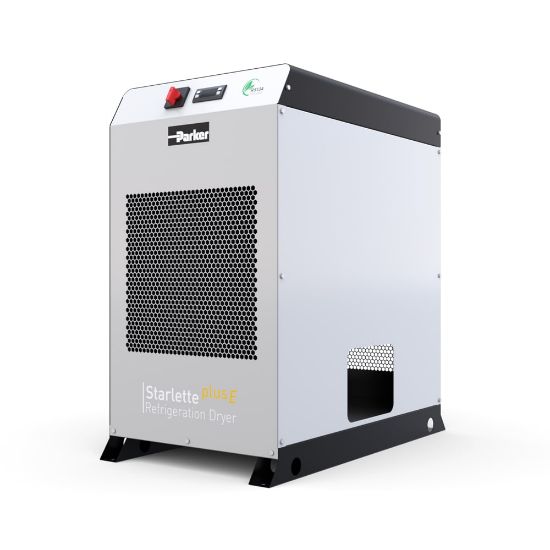

Picture of StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - SPS0200-A23016014TIU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - SPS0200-A23016014TIU

Refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 10-250 scfm while maintaining industry leading low operating costs.
Availability:
Backordered
SKU SPS0200-A23016014TIU
$7,045.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADesign Rating100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient
Cooling MethodAir Cooled CondenserFlow Rate200 scfm (339.8 m3/h)
Electrical Requirements230V / 1Ph / 60HzBrandPARKER
DivisionIndustrial Gas Filtration and Generation DivisionIngress Protection RatingIP44
Height33.1 inchWeight80 kg
Electronics TypeETL ListedProduct TypeRefrigeration
Connection TypeNPT-FRefrigerant TypeR-513A
Pressure Dew PointISO 8573-1 Class 5Optional AccessoriesDryer Only
Maximum Operating Pressure203.0 psigMinimum Operating Pressure29.0 psig
Maximum Ambient Temperature50.0 °CMaximum Operating Temperature65.0 °C
Minimum Operating Temperature41.0 °FDepth780.0 mm
Width17.7 inchTechnologyNon-Cycling
Port Connection1 1/2 in
