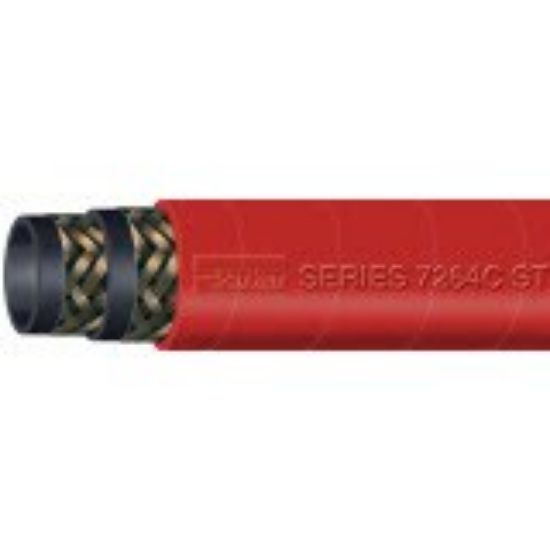

7264C-752 - STEAM-LANCE® 250 COMPACT STEAM HOSE

Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	365 in stock

SKU 7264C-752

$9.53/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	3/4	Minimum Operating Temperature	-40 °C
Media	Steam	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Size	-12	Inside Diameter	3/4 inch
Hose Inner Tube Material	Black	Minimum Bend Radius	9 inch
Nominal Hose Inside Diameter	20 mm	Cover Structure	Perforated
Weight	0.7 kg/m	Outside Diameter	1.2 inch
Specifications Met	ISO 6134, Type 2	Maximum Operating Pressure	250 bar (Superheated Steam)
Hose Reinforcement Material	Multiple Braids of Wire	Maximum Operating Temperature	208 °C (Saturated Steam)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
