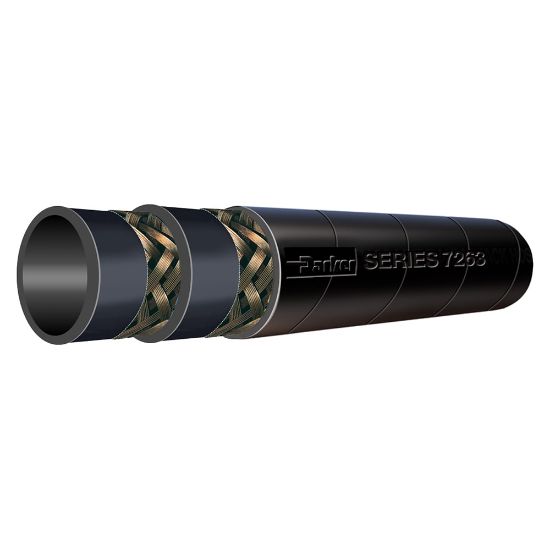

7263-752 - STEAM-LANCE® 250 STEAM HOSE

Name: 7263-752 - STEAM-LANCE® 250 STEAM HOSE
SKU: 7263-752
Price: 10.72 USD
Availability: InStock

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:

75 in stock

Olivette, MO	38
TOPEKA, KS	37

Partner Available:

1392 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7263-752

$10.72/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	3/4	Packaging	Carton
Minimum Operating Temperature	-40 °F	Media	Steam
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Size	-12
Inside Diameter	3/4 inch	Hose Inner Tube Material	Black
Minimum Bend Radius	10 inch	Nominal Hose Inside Diameter	20 mm
Outside Diameter	1.340 inch	Cover Structure	Perforated
Weight	0.98 kg/m	Specifications Met	ISO 6134, Type 2
Maximum Operating Pressure	250 bar (Superheated Steam)	Hose Reinforcement Material	Multiple Braids of Wire
Maximum Operating Temperature	450 °F (Superheated Steam)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
