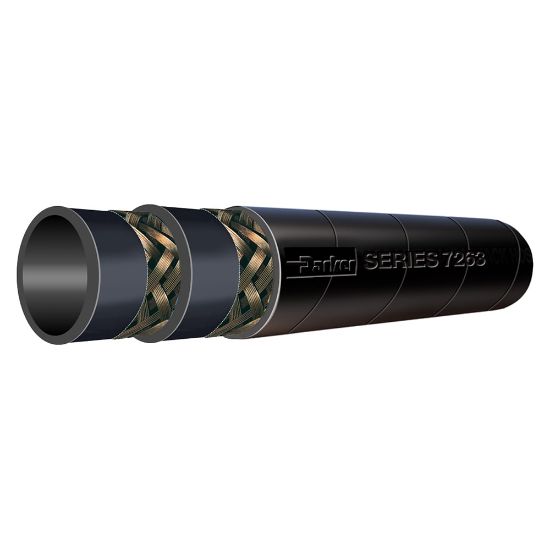

7263E-2002 - STEAM-LANCE® 250 STEAM HOSE

Name: 7263E-2002 - STEAM-LANCE® 250 STEAM HOSE
SKU: 7263E-2002
Price: 28.98 USD
Availability: InStock

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:

2470 in stock

Olivette, MO	2,442
TOPEKA, KS	24
COLUMBIA, MO	4

Partner Available:

36 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7263E-2002

$28.98/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	2	Packaging	Carton
Minimum Operating Temperature	-40 °F	Media	Steam
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Size	-2
Inside Diameter	50.8 mm	Minimum Bend Radius	25 inch
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Structure	Perforated
Weight	1.76 lb/ft	Outside Diameter	2.7 inch
Specifications Met	ISO 6134, Type 2	Maximum Operating Pressure	261 bar (Saturated Steam)
Hose Reinforcement Material	Multiple Braids of Wire	Maximum Operating Temperature	406 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
