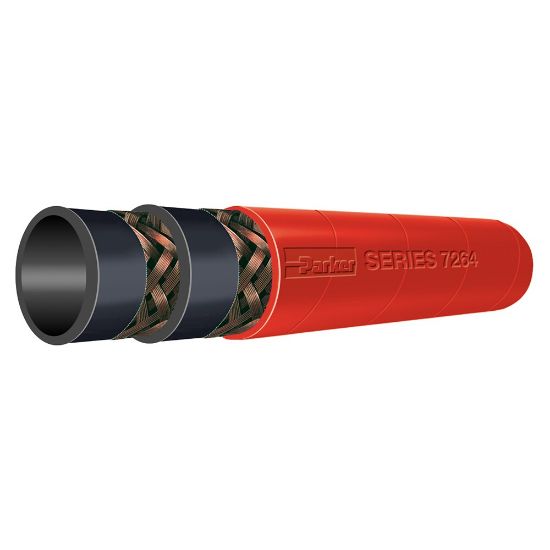

7264-1002 - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 7264-1002

$15.69/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	1	Packaging	Carton
Minimum Operating Temperature	-40 °C	Media	Steam
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Inside Diameter	1 inch
Size	-16	Nominal Hose Inside Diameter	25 mm
Minimum Bend Radius	12 inch	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Cover Structure	Perforated	Weight	0.85 lb/ft
Outside Diameter	40.5 mm	Specifications Met	ISO 6134, Type 2
Maximum Operating Pressure	17 bar (Superheated Steam)	Hose Reinforcement Material	Multiple Braids of Wire
Maximum Operating Temperature	450 °F (Superheated Steam)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
