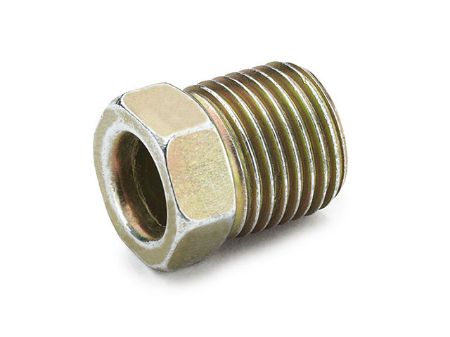

Steel Nut–Zinc Chromate 41IFS
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker 45° inverted flare fittings meet the functional requirements of SAE J512 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty | Outer Diameter 1 | Thread 1 | Parker Group | Material | Inch/Metric | Parker Division | Configuration Type | Outer Diameter 1 | Outer Diameter 1 Inch/mm | Thread 1 Type | Operating Temperature | Series | SAE Compliance | Thread 1 | Configuration Sub-Type | Pressure Rating | SAE Reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41IFS-10 | Backordered | Backordered | POR | EA | EA | Steel | 10 | 5/8 Inch | 7/8-18 UN/UNF | Fluid Connector | Steel | Inch | Fluid Systems Connector (Brass Products) | Auxiliary | 5/8 Inch | Inch | UN/UNF | -65°F to +250°F | 45° Inverted Flare | J512 | 7/8-18 UN/UNF | Nut | 650 PSI | SAE 040110 | |
| 41IFS-4 | Backordered | 4 in stock | $0.66/each | EA | EA | Steel | 50 | 1/4 Inch | 7/16-24 UN/UNF | Fluid Connector | Steel | Inch | Fluid Systems Connector (Brass Products) | Auxiliary | 1/4 Inch | Inch | UN/UNF | -65°F to +250°F | 45° Inverted Flare | J512 | 7/16-24 UN/UNF | Nut | 1400 PSI | SAE 040110 | |
| 41IFS-5 | 3 in stock | 188 in stock | POR | EA | EA | Steel | 50 | 5/16 Inch | 1/2-20 UN/UNF | Fluid Connector | Steel | Inch | Fluid Systems Connector (Brass Products) | Auxiliary | 5/16 Inch | Inch | UN/UNF | -65°F to +250°F | 45° Inverted Flare | J512 | 1/2-20 UN/UNF | Nut | 1200 PSI | SAE 040110 | |
| 41IFS-6 | 1 Limited Stock | 15 in stock | $3.24/each | EA | EA | Steel | 25 | 3/8 Inch | 5/8-18 UN/UNF | Fluid Connector | Steel | Inch | Fluid Systems Connector (Brass Products) | Auxiliary | 3/8 Inch | Inch | UN/UNF | -65°F to +250°F | 45° Inverted Flare | J512 | 5/8-18 UN/UNF | Nut | 1000 PSI | SAE 040110 |
