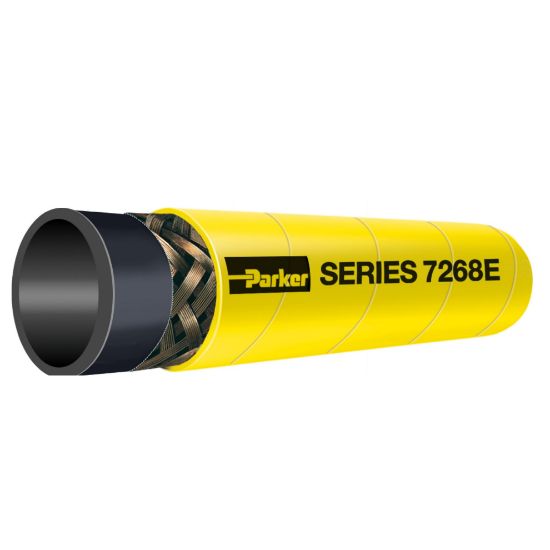

7268E-1001100 - STINGER™ II High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7268E

Stinger II High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in applications to 212°F and 1000 psi, Series 7268E

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	57 in stock

SKU 7268E-1001100

$12.73/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Standard Package Quantity	100 ft	Media	Water
Maximum Operating Temperature	100 °C	Maximum Operating Pressure	69 bar
Minimum Bend Radius	203 mm	Inside Diameter	1 inch
Cover Color	Yellow	Hose Inner Tube Material	Black
Specifications Met	MSHA	Minimum Operating Temperature	-29 °C
Cover Material	Nitrile/PVC	Hose Reinforcement Material	1 Braid of Wire
Weight	0.75 kg/m	Outside Diameter	1.339 inch

Product resources

Literature and Reference Materials
