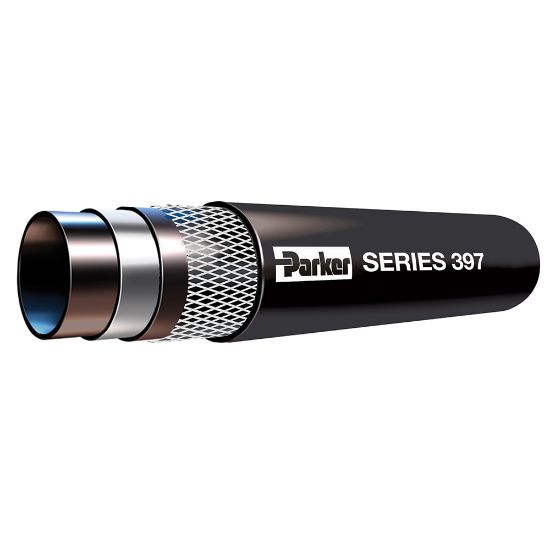

Picture of 39705 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

39705 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

Super-Flex Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 397
Availability:
125 in stock
Kansas City, KS125
Partner Available:2658 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 39705
$2.99/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)5/16
Maximum Working Pressure (psi)100Maximum Operating Temperature125 °C
Weight0.11 lb/ftMaximum Operating Pressure100 psi
Minimum Bend Radius50.8 mmCover StructureSmooth
Inside Diameter7.9 mmPackage TypeReel
Hose Inner Tube MaterialBlackVacuum Pressure Rating24 Inch-Hg
Minimum Operating Temperature-30 °CCompatible FittingHY Series
Length per Package250 ftTube MaterialNitrile and Translucent Thermoplastic Barrier
MediaFuels (Diesel, Gasoline) - Check fuel type with our catalogue chart.Cover MaterialChlorinated Polyethylene Rubber (CPE)
Outside Diameter14.2 mmSpecifications MetSAE J30R7 / J30R14, Type 2
Hose Reinforcement Material1 Braid of TextileLength76.2 m Supplied in reels, with max. 3 lengths at least 7.62 m long.
