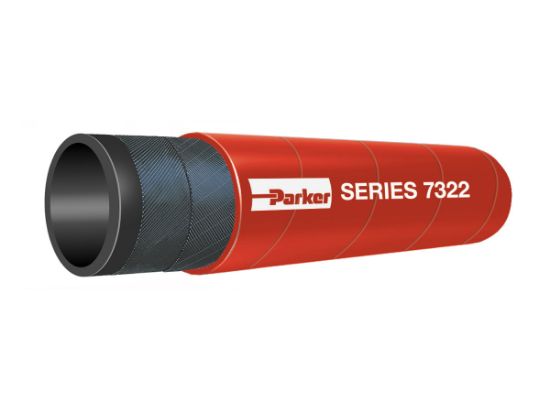

7322-200200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	1025 in stock

SKU 7322-200200

$21.80/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	2	Minimum Operating Temperature	-40 °C
Specifications Met	N/A	Maximum Operating Temperature	100 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Hose Inner Tube Material	Black
Size	-32	Inside Diameter	50.8 mm
Hose Reinforcement Material	Mutiple Plies of Textile	Maximum Operating Pressure	13.8 bar
Minimum Bend Radius	304.8 mm	Media	Air including oil mist
Nominal Hose Inside Diameter	50 mm	Weight	1.23 lb/ft
Outside Diameter	65.2 mm	Pkg Qty	200
Inner Diameter	2 Inch	UOM	FT
Color	Red	Pkg Qty/UOM	200 FT
Working Pressure	200 PSI (14 bar)	Mating Fitting Series	43
Package Type	Coil	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter Inch/mm	Inch	Inner Diameter	2 Inch
Color	Red	Hose Pressure Range	Low
Mating End Fitting Series	43	Series	7322
Trade Name	SUPER-LOK GS™	Hose Category	General Service Air & Water

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
