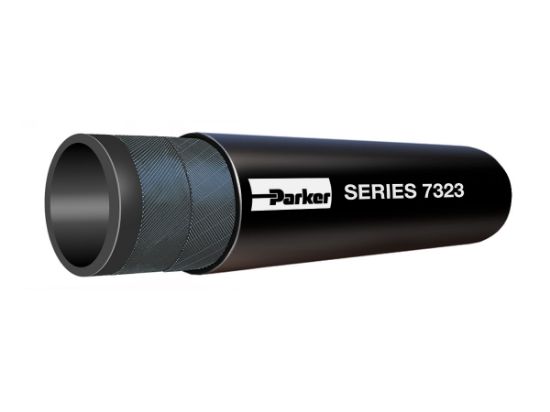

Picture of SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE - 7323-150200

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE - 7323-150200

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi
Availability:
22 in stock
TOPEKA, KS22
SKU 7323-150200
$14.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTColorBlack
Hose I.D. (inch)1-1/2Minimum Operating Temperature-40 °F
DivisionHose Products DivisionSpecifications MetN/A
Maximum Operating Temperature212 °FCover MaterialEthylene Propylene Diene Monomer (EPDM)
ApplicationAirHose Reinforcement Material2 Plies of Textile
Size-24Inside Diameter38.1 mm
Hose Inner Tube MaterialARPM Class C Oil ResistanceMaximum Operating Pressure13.8 bar
Weight0.82 lb/ftNominal Hose Inside Diameter40 mm
MediaAir including oil mistOutside Diameter1.990 inch
Minimum Bend Radius8.5 inchPkg Qty200
Inner Diameter1.5 InchUOMFT
ColorBlackPkg Qty/UOM200 FT
Working Pressure200 PSI (14 bar)Mating Fitting Series43
Package TypeCoilParker GroupFluid Connector
Inch/MetricInchParker DivisionHose Products
Inner Diameter Inch/mmInchInner Diameter1.5 Inch
ColorBlackHose Pressure RangeLow
Mating End Fitting Series43Series7323
Trade NameSUPER-LOK GS™Hose CategoryGeneral Service Air & Water
