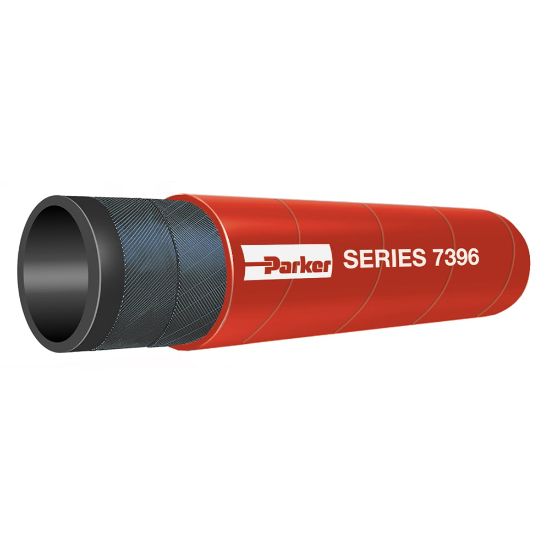

7396-125300200 - SUPER MPT® II Nonconductive Multipurpose Oil Resistant Hose, Series 7396

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	169 in stock

SKU 7396-125300200

$14.17/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Standard Pack Qty (ft)	200	Maximum Working Pressure (psi)	300
Maximum Operating Pressure	300 psi	Package Type	Coil
Cover Color	Red	Inside Diameter	31.8 mm
Hose Reinforcement Material	2 Plies of Textile	Media	Lubricants (Oils)
Weight	1.18 kg/m	Cover Material	Chloroprene Rubber (CR)
Hose Inner Tube Material	Nitrile	Minimum Operating Temperature	-20 °F
Minimum Bend Radius	190.5 mm	Maximum Operating Temperature	70 °C (Air)
Outside Diameter	45.7 mm	Compatible Fitting	71 Series
Cover Structure	Wrapped	Specifications Met	ARPM Class C Tube (non-conductive)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
