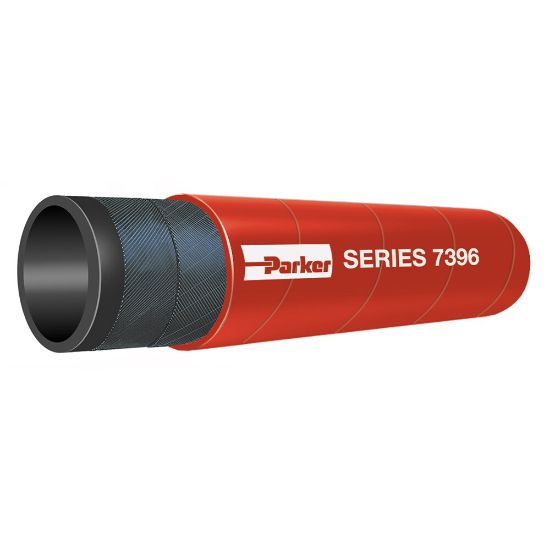

7396-150300200 - SUPER MPT® II Nonconductive Multipurpose Oil Resistant Hose, Series 7396

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	1 Limited Stock

SKU 7396-150300200

$15.43/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Standard Pack Qty (ft)	200	Maximum Working Pressure (psi)	300
Media	Air	Maximum Operating Pressure	300 psi
Package Type	Coil	Cover Color	Red
Inside Diameter	1-1/2 inch	Hose Inner Tube Material	Black
Hose Reinforcement Material	4 Plies of Textile	Cover Material	Chloroprene Rubber (CR)
Minimum Operating Temperature	-20 °F	Maximum Operating Temperature	212 °F (Other Media)
Compatible Fitting	71 Series	Cover Structure	Wrapped
Weight	0.87 lb/ft	Outside Diameter	2.025 inch
Specifications Met	ARPM Class C Tube (non-conductive)	Minimum Bend Radius	215.9 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
