*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

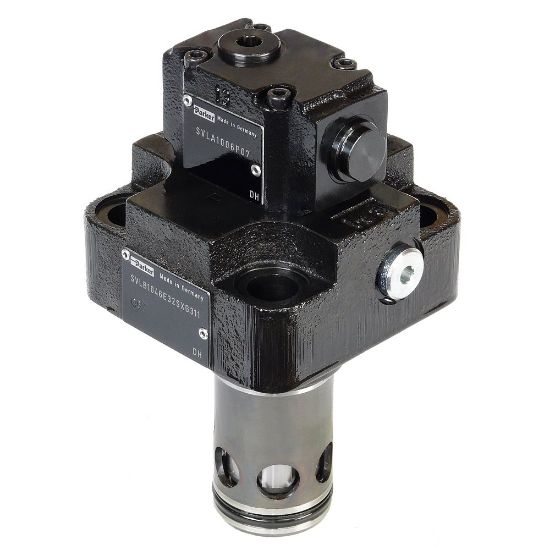

SVLB1046E40N

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU SVLB1046E40N

$3,753.12/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker's hydraulically pilot operated check valves series SVLB in cartridge design ensure a reliable shut-off of the cylinder for smooth operation. They allow free flow from A to B. The counter-flow direction is blocked. When pressure is applied to control port X, the ring chamber flow from B to A is released.

Features:

Proven design - allows a reliable cylinder shut-off
Cavity and mounting pattern acc. to ISO 7368 - for quick and easy integration
5 sizes, NG16 to NG50 - makes selection easy
Nominal flow up to 1800 l/min - optimum efficiency in relation to valve size
Short delivery time for most variations - no warehousing necessary
Pilot control ratio is 6:1
Optionally with dampening poppet

Applications:

Suitable for general hydraulic applications
General presses

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Spring Closing Pressure	0.5 Bar
Port Connection	NG40	Parker Group	Fluid Connector
Seal Material	NBR	Parker Division	Fluid System Connector
Poppet Style	04, Standard
