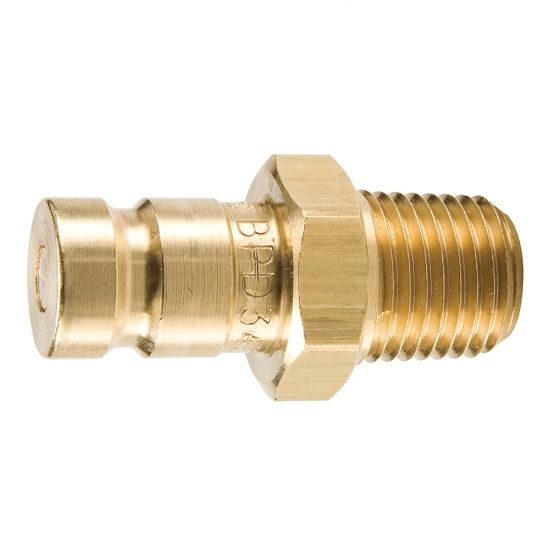

Picture of Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - BPD323Y

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - BPD323Y

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
Backordered
SKU BPD323Y
$25.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfMale Nipple
Connection TypeMale NPTFTube Size (inch)na
Connection Thread Size (inch)1/8 - 27Body MaterialBrass
Maximum Operating Temperature400 °FMinimum Operating Temperature-15 °F
Seal MaterialFluorocarbonBody Size1/8 inch
Maximum Operating Pressure300 psiSpecifications MetSAE J1502 / ISO 15171-1
DivisionQuick Coupling DivisionPlating Typena
Hex Size0.63 inchApplicationDiagnostic
Flow Rate0.8 Gal/minValve TypeNon-spill
Product TypePush to connect
