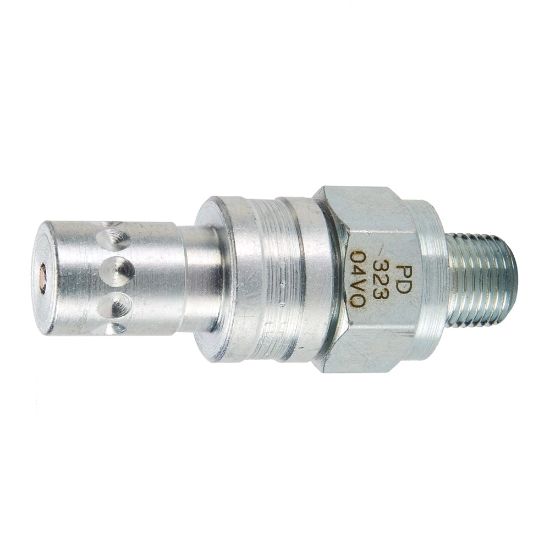

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PD331 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD331 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD331
Price: 63.30 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

3 in stock

Kansas City, KS

Partner Available:

47 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD331

$63.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	na
Connection Thread Size (inch)	3/8 - 24	Connection Type	Male UNF
Coupling Half	Male Nipple	Seal Material	Nitrile
Specifications Met	SAE J1502 / ISO 15171-1	Body Size	1/8 inch
Maximum Operating Pressure	6000 psi	Plating Type	Zinc with clear trivalent chromate
Flow Rate	0.8 Gal/min	Maximum Operating Temperature	250 °F
Body Material	Steel	Valve Type	Non-spill
Hex Size	0.69 inch	Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
