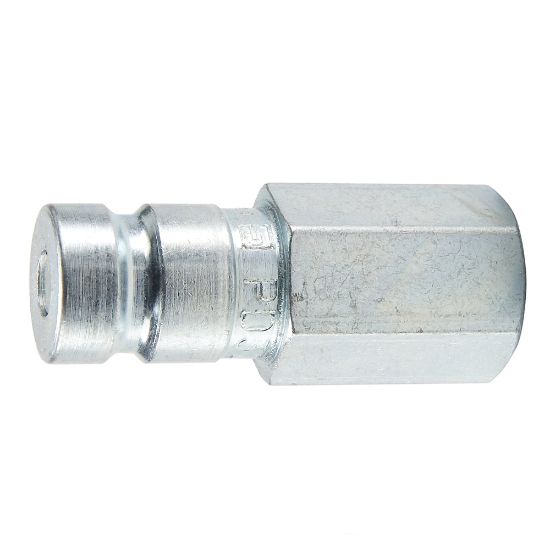

PD342-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PD342-6

$30.39/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Coupling Half	Male Nipple	Tube Size (inch)	na
Connection Thread Size (inch)	1/4 - 18	Flow Rate	0.8 Gal/min
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Hex Size	0.75 inch	Maximum Operating Pressure	6000 psi
Body Material	Steel	Valve Type	Non-spill
Body Size	1/8 inch	Plating Type	Zinc with clear trivalent chromate
Specifications Met	SAE J1502	Seal Material	Nitrile
