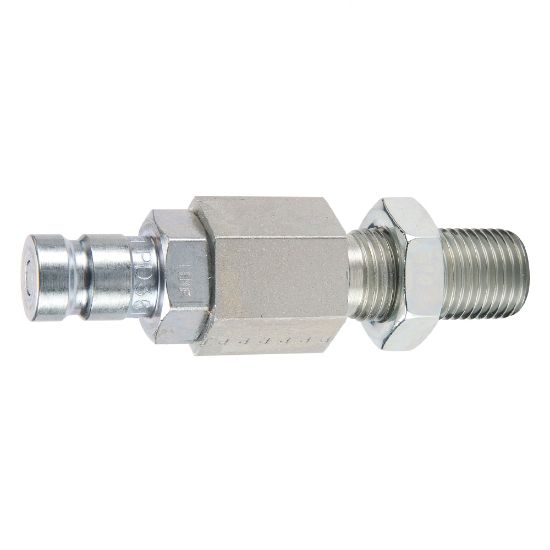

PD346 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	96 in stock

SKU PD346

$36.11/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	9/16 - 18 UNF
Coupling Half	Male Nipple	Tube Size (inch)	1/4
Connection Type	Male bulkhead Seal-Lok	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	6000 psi	Body Material	Steel
Hex Size	0.81 inch	Valve Type	Non-spill
Plating Type	Zinc with clear trivalent chromate	Flow Rate	0.8 Gal/min
Maximum Operating Temperature	250 °F	Specifications Met	SAE J1502 / ISO 15171-1
Body Size	1/8 inch	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
