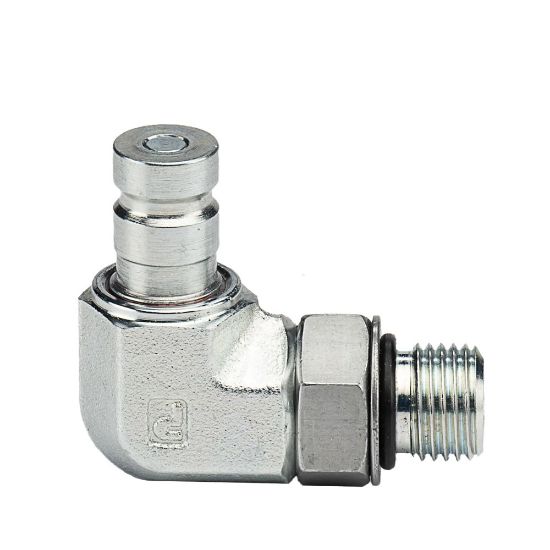

Picture of Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD361-90

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD361-90

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
Backordered
SKU PD361-90
$38.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection TypeMale UNF
Coupling HalfMale NippleTube Size (inch)na
Connection Thread Size (inch)9/16 - 18Specifications MetSAE J1502 / ISO 15171-1
Body Size1/8 inchPlating TypeZinc with clear trivalent chromate
Seal MaterialNitrileDivisionQuick Coupling Division
Maximum Operating Temperature250 °FApplicationDiagnostic
Flow Rate0.8 Gal/minMaximum Operating Pressure6000 psi
Valve TypeNon-spillHex Size0.69 inch
Minimum Operating Temperature-40 °FBody MaterialSteel
Product TypePush to connect
