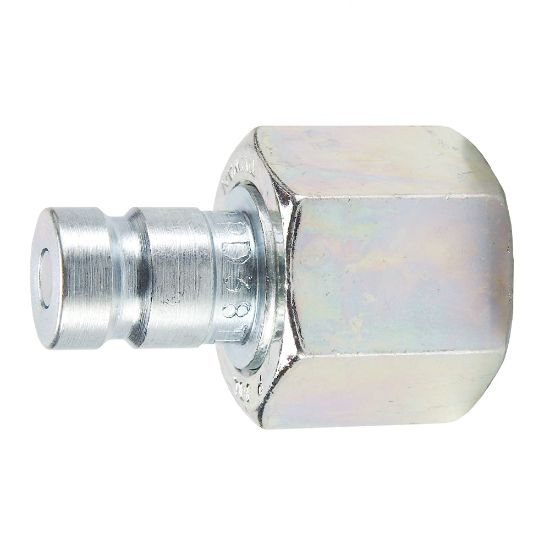

PD38BTL - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD38BTL - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD38BTL
Price: 20.17 USD
Availability: LimitedAvailability

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:

2 Limited Stock

TOPEKA, KS

Partner Available:

49 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD38BTL

$20.17/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Tube Size (inch)	1/2	Coupling Half	Male Nipple
Connection Type	Seal-Lok	Hex Size	n/a inch
Flow Rate	0.8 Gal/min	Body Material	Steel
Valve Type	Non-spill	Dimensional Weight	0.02670863309352518 lb
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	6000 psi	Plating Type	Zinc with clear trivalent chromate
Body Size	1/8 inch	Specifications Met	SAE J1502
Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
