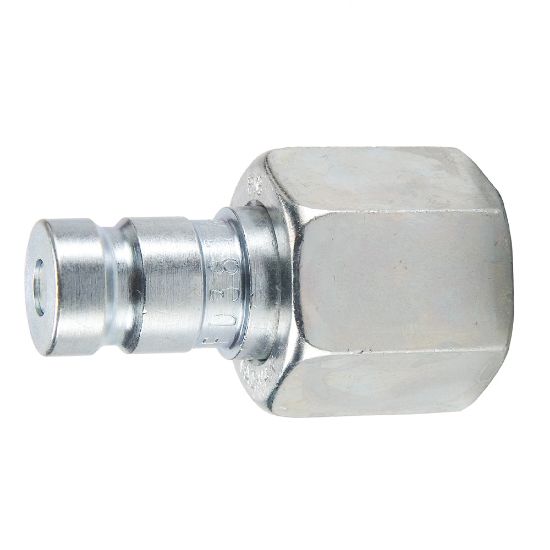

Picture of Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD38BTX-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD38BTX-6

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
Backordered
SKU PD38BTX-6
$29.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection TypeTriple-Lok
Connection Thread Size (inch)naTube Size (inch)1/2
Coupling HalfMale NippleDivisionQuick Coupling Division
Specifications MetSAE J1502ApplicationDiagnostics
Seal MaterialNitrileFlow Rate0.8 Gal/min
Body MaterialSteelMaximum Operating Temperature250 °F
Valve TypeNon-spillHex Sizen/a inch
Minimum Operating Temperature-40 °FMaximum Operating Pressure6000 psi
Plating TypeZinc with clear trivalent chromateProduct TypePush to connect
Body Size1/8 inch
