*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

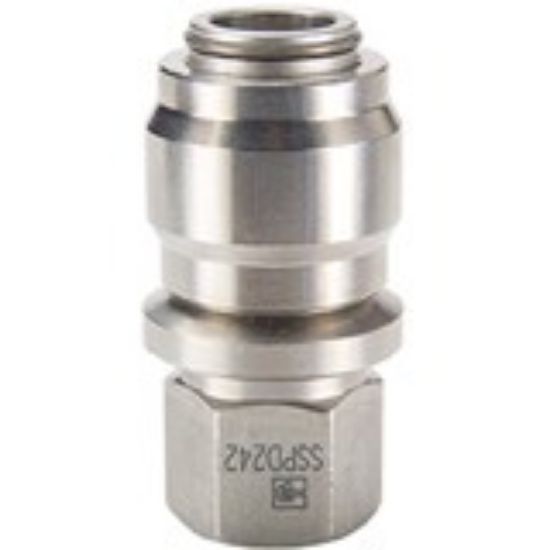

SSPD242Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU SSPD242Y

$509.05/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Coupling Half	Female Coupler
Connection Type	Female NPTF	Valve Type	Non-spill
Hex Size	0.81 inch	Maximum Operating Pressure	6000 psi
Plating Type	na	Body Material	Stainless Steel
Specifications Met	SAE J1502 / ISO 15171-1	Seal Material	Fluorocarbon
Body Size	1/8 inch	Minimum Operating Temperature	-15 °F
Flow Rate	0.8 Gal/min	Maximum Operating Temperature	400 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
