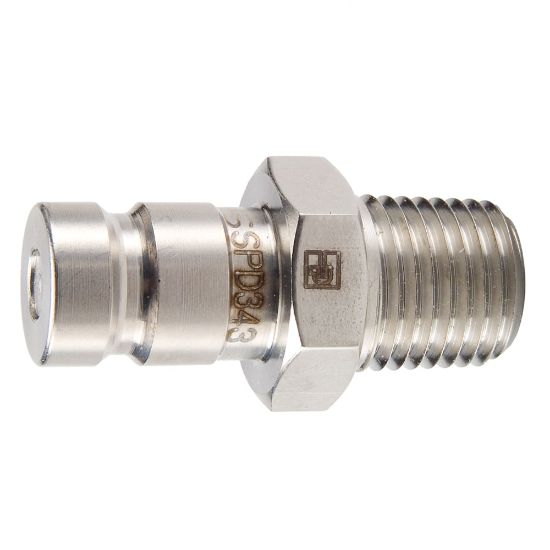

SSPD343Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU SSPD343Y

$125.77/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPTF	Tube Size (inch)	na
Connection Thread Size (inch)	1/4 - 18	Seal Material	Fluorocarbon
Body Size	1/8 inch	Specifications Met	SAE J1502 / ISO 15171-1
Maximum Operating Temperature	400 °F	Flow Rate	0.8 Gal/min
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	6000 psi
Valve Type	Non-spill	Hex Size	0.69 inch
Body Material	Stainless Steel	Plating Type	na
