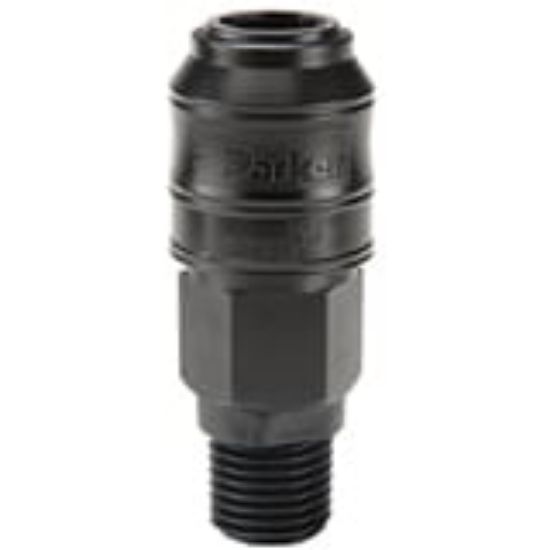

S2-ACV-04-MP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2-ACV-04-MP

$24.37/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Body Size (inch)	1/8	Connection Type	Male NPT
Connection Tube Inside Diameter	na	Flow Rate	1.5
Connection Thread Size (inch)	1/4 - 18	Valve Type	Poppet
Spring Material	Stainless Steel	Maximum Operating Temperature	180 °F
Maximum Operating Pressure	145 psi	Hex Size	0.67 inch
Minimum Operating Temperature	0 °F	Body Material	Acetal
Seal Material	Nitrile
