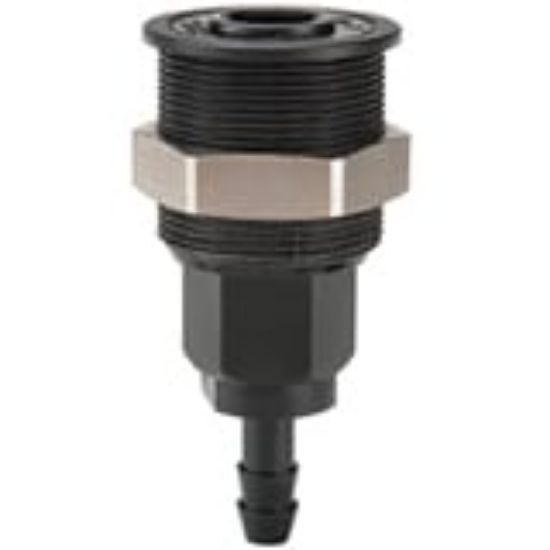

S2-APV-04-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2-APV-04-HB

$25.78/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Panel mount hose barb
Connection Thread Size (inch)	na	Flow Rate	1.5
Connection Tube Inside Diameter	1/4	Coupling Half	Female Coupler
Body Size (inch)	1/8	Maximum Operating Pressure	145 psi
Hex Size	0.67 inch	Seal Material	Nitrile
Minimum Operating Temperature	0 °F	Valve Type	Poppet
Body Material	Acetal	Maximum Operating Temperature	180 °F
Spring Material	Stainless Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
