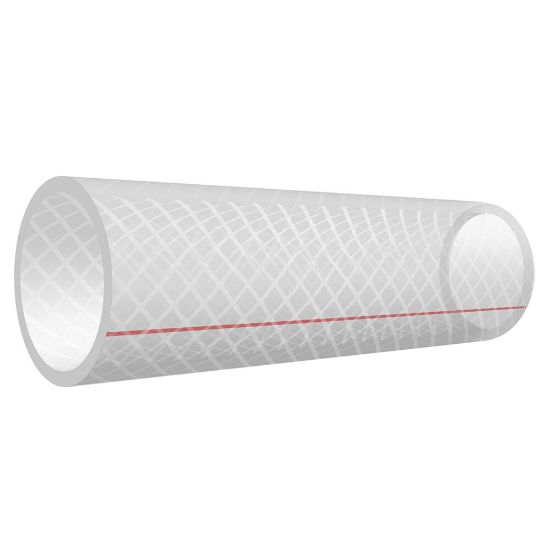

7581-751 - THORO-BRAID® PVC Clear General Service Hose, Series 7581

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1421 in stock

SKU 7581-751

$2.62/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	170	Media	Air
Minimum Operating Temperature	-10 °C	Specifications Met	FDA
Package Type	Coil	Hose Inner Tube Material	Clear
Maximum Operating Temperature	60 °C	Inside Diameter	3/4 inch
Outside Diameter	1.030 inch	Weight	0.22 lb/ft
Cover Color	Transparent	Cover Material	PVC
Cover Structure	Smooth	Length per Package	300 ft
Minimum Bend Radius	177.8 mm	Maximum Operating Pressure	170 psi
Hose Reinforcement Material	2 Plies of Textile with Longitudinal Red Tracer Yarn

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
