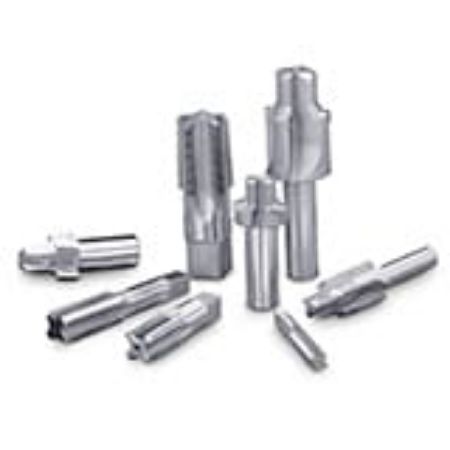

Thread Tapping and Port Counterboring Tools
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's high quality Thread Tapping and Port Counterboring Tools machine precision ports and threads in the most common industrial fitting port styles.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
| Action | SKU | Availability | Partner Available | Price | UOM | Port Type | Length | Dash Number | Wrench Size | Shank Length | Operation Type | Shank Diameter | Port Thread Size | Specifications Met | Pilot Drill Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/16X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 5 1/8 inch | 12 | 0.672 inch | na | Tapping | 0.896 inch | na | SAE J1926-1 | na | |
| 1 3/16X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 5 7/16 inch | 14 | 0.766 inch | na | Tapping | 1.021 inch | na | SAE J1926-1 | na | |
| 1 5/16X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 5 3/4 inch | 16 | 0.831 inch | na | Tapping | 1.108 inch | na | SAE J1926-1 | na | |
| 1 5/8X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 6 11/16 inch | 20 | 0.979 inch | na | Tapping | 1.305 inch | na | SAE J1926-1 | na | |
| 1 7/8X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 7 5/16 inch | 24 | 1.139 inch | na | Tapping | 1.519 inch | na | SAE J1926-1 | na | |
| 1/2X20 UNF-2B | Backordered | 1 Limited Stock | $94.95/each | EA | SAE Straight Thread | 3 3/8 inch | 5 | 0.275 inch | na | Tapping | 0.0367 inch | na | SAE J1926-1 | na | |
| 2 1/2X12 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 8 3/4 inch | 32 | 1.575 inch | na | Tapping | 2.1 inch | na | SAE J1926-1 | na | |
| 3/4X16 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 4 1/4 inch | 8 | 0.442 inch | na | Tapping | 0.59 inch | na | SAE J1926-1 | na | |
| 3/8X24 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 2 15/16 inch | 3 | 0.286 inch | na | Tapping | 0.381 inch | na | SAE J1926-1 | na | |
| 5/16X24 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 2 23/32 inch | 2 | 0.238 inch | na | Tapping | 0.318 inch | na | SAE J1926-1 | na | |
| 7/16X20 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 3 5/16 inch | 4 | 0.242 inch | na | Tapping | 0.323 inch | na | SAE J1926-1 | na | |
| 7/8X14 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 4 11/16 inch | 10 | 0.523 inch | na | Tapping | 0.697 inch | na | SAE J1926-1 | na | |
| 9/16X18 UNF-2B | Backordered | Backordered | POR | EA | SAE Straight Thread | 3 19/32 inch | 6 | 0.322 inch | na | Tapping | 0.429 inch | na | SAE J1926-1 | na | |
| 974242-G1 | Backordered | Backordered | POR | EA | BSPP | 3 3/4 inch | na | na | na | Tapping | 1.125 inch | na | ISO 228-1 | na | |
| 974242-G1/2 | Backordered | Backordered | POR | EA | BSPP | 3 1/8 inch | na | na | na | Tapping | 0.688 inch | na | ISO 228-1 | na | |
| 974242-G1/4 | Backordered | Backordered | POR | EA | BSPP | 2 7/16 inch | na | na | na | Tapping | 0.563 inch | na | ISO 228-1 | na | |
| 974242-G1/8 | Backordered | Backordered | POR | EA | BSPP | 2 1/8 inch | na | na | na | Tapping | 0.438 inch | na | ISO 228-1 | na | |
| 974242-G1-1/2 | Backordered | Backordered | POR | EA | BSPP | 4 1/4 inch | na | na | na | Tapping | 1.5 inch | na | ISO 228-1 | na | |
| 974242-G1-1/4 | Backordered | Backordered | POR | EA | BSPP | 4 inch | na | na | na | Tapping | 1.313 inch | na | ISO 228-1 | na | |
| 974242-G3/4 | Backordered | Backordered | POR | EA | BSPP | 3 1/4 inch | na | na | na | Tapping | 0.906 inch | na | ISO 228-1 | na |
