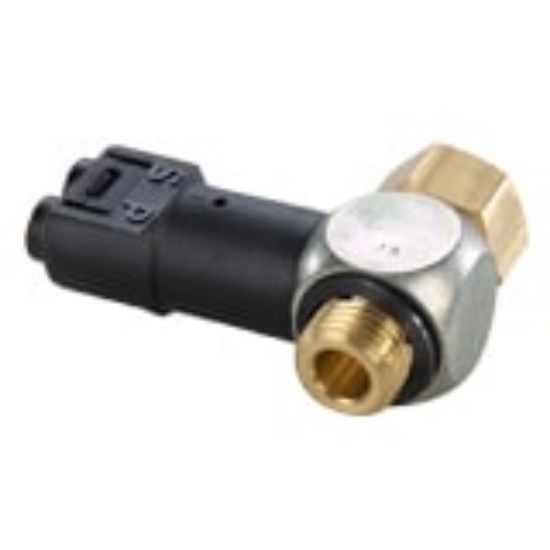

Threshold Sensor Fittings - Metric - PSBJ731-M5

Name: Threshold Sensor Fittings - Metric - PSBJ731-M5
SKU: PSBJ731-M5

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:

Backordered

SKU PSBJ731-M5

$81.29

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	M5x0.8
Port Type	BSPP	Connection 1 Thread Size (mm)	M5x0.8
Type	Pneumatic - 4mm pilot	Connection 1 Style	BSPP
Style	Male/Female Thread	Pilot Line (mm)	4
Response Time	3 ms	Maximum Operating Pressure	115 psi
Bolt Material	Brass	Minimum Operating Temperature	5 °F
Body Material	Composite	Application	Pneumatics
Division	Fluid System Connectors Division	Maximum Operating Temperature	140 °F
