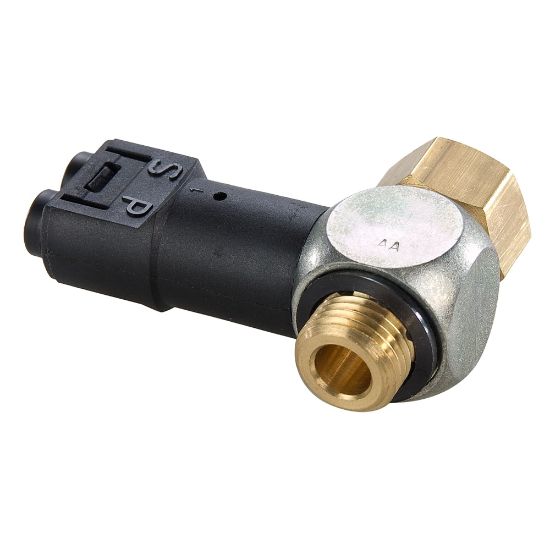

Picture of PSBJ731-2 - Threshold Sensor Fittings - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PSBJ731-2 - Threshold Sensor Fittings - Inch

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU PSBJ731-2
$54.47/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 StyleNPT
Port TypeNPT/UNFPort Size (inch)1/8
Pilot Line (inch)5/32Connection 1 Thread Size (inch)1/8
TypePneumatic - 5/32 PilotStyleMale Thread
Operating Pressure0 to 150 psiOperational Life10 Million
Bolt MaterialBrassMaximum Operating Temperature140 °F
Maximum Operating Frequency10 HzResponse Time3 ms
Maximum Operating Pressure115 psiMinimum Operating Temperature5 °F
Port Size10-32 | 1/8" | 1/4" | 3/8" | 1/2"Body MaterialComposite
