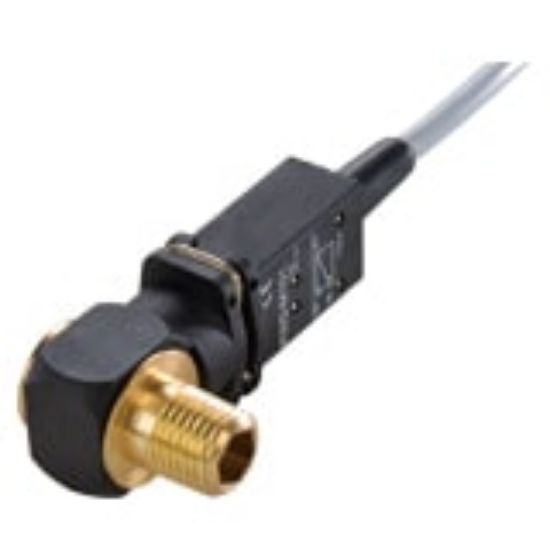

PSPE731-6G - Threshold Sensor Fittings - Metric

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU PSPE731-6G

$190.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	3/8
Port Type	BSPP	Type	Pneumatic/Electric - BSPP
Pilot Line (mm)	Electric	Style	Pneumatic/Electric
Connection 1 Style	BSPP	Connection 1 Thread Size (mm)	3/8
Minimum Operating Temperature	5	Response Time	n/a
Maximum Operating Pressure	115	Bolt Material	Brass
Maximum Operating Temperature	140	Operating Pressure	0 to 150
Port Size	10-32 \| 1/8" \| 1/4" \| 3/8" \| 1/2"	Body Material	Thermoplastic
Operational Life	10 Million	Maximum Operating Frequency	10 Hz
