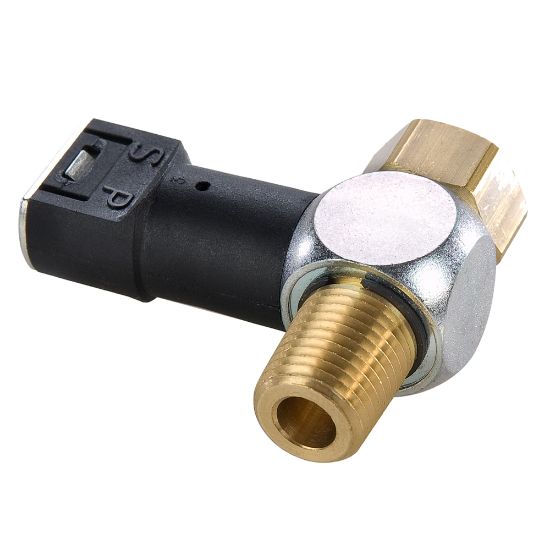

Threshold sensors - PSPJ731-6

Name: Threshold sensors - PSPJ731-6
SKU: PSPJ731-6

The threshold sensor provides pneumatic or electronic feedback. When the piston is at the end of stroke, the pressure drops and the sensor gives an output. The threshold sensor consists of a banjo fitting and a plug-in sensor.

Availability:

Backordered

SKU PSPJ731-6

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size (inch)	3/8
Port Type	NPT	Pilot Line (inch)	10-32
Type	Pneumatic - 10-32 Pilot	Connection 1 Style	NPT
Style	Male/Female Thread	Connection 1 Thread Size (inch)	3/8
Response Time	3 ms	Maximum Operating Pressure	115 psi
Division	Pneumatic Division	Port Size	10-32 \| 1/8" \| 1/4" \| 3/8" \| 1/2"
Application	Textile	Operational Life	10 Million
Bolt Material	Brass	Operating Temperature	-15° to +60° °C
Minimum Operating Temperature	5 °F	Operating Pressure	0 to 10.3 bar
Maximum Operating Frequency	10 Hz	Body Material	Thermoplastic
Maximum Operating Temperature	140 °F
