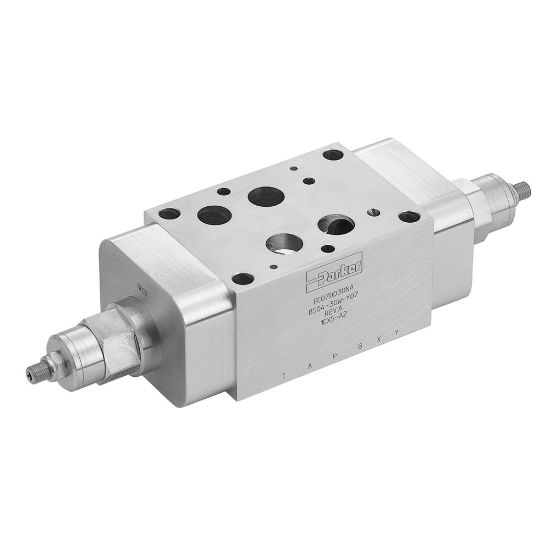

Picture of Throttle Sandwich Valve with Check - FC, FD Series - FC05DD30NA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Throttle Sandwich Valve with Check - FC, FD Series - FC05DD30NA

Parker’s FC, FD series throttle check valves are designed for maximum flow rates.
Availability:
Backordered
SKU FC05DD30NA
$1,071.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASizeNFPA D05; CETOP 5; NG10
Flow MeterMeter-OutMaximum Operating Pressure3000 PSI
Allowable Circuit Leakage<5 DPMMediaOil
Maximum Operating Pressure3000 psiCracking Pressure3 psi
Maximum Operating Temperature+122 °FPort ConnectionA and B control
DivisionHydraulic Valve Systems DivisionMinimum Operating Temperature-4 °F
Body MaterialAluminumMounting TypeSubplate
Product StyleThrottle Valve with CheckSeal MaterialNitrile
Actuation TypeHydrau;ic PressureWeight2.9 lb
Filter Efficiency RatingISO 4406 (1999); 18/16/13 (meet NAS 1638:7)Maximum Flow Rate25 Gal/min
