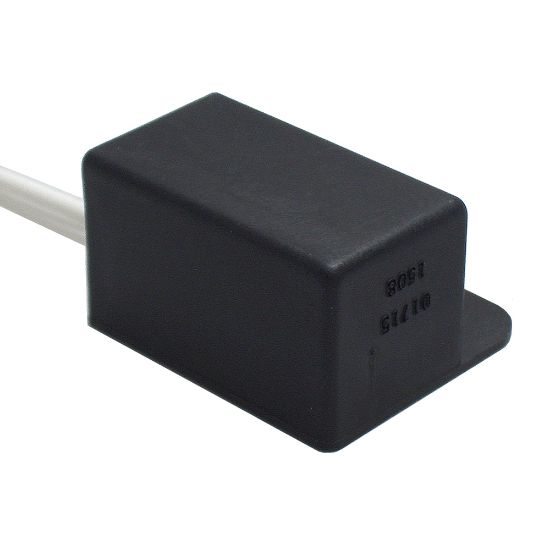

Picture of Tilt Switch - RM50 - 01715ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Tilt Switch - RM50 - 01715ECD

Parker's RM50 tilt switches detect angular movement in a single axis. They are designed using reed switch technology and no moving external components making them very robust and well suited for applications where mercury (Hg) cannot be used.
Availability:
Backordered
SKU 01715ECD
$66.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAModel NumberRM50
Minimum Operating Temperature-40Housing MaterialGlass-filled Nylon
Maximum Switching Current1Hysteresis± 10 ° max
Ingress Protection Rating67Electrical ConnectionDTM
Contact Rating20DivisionElectronic Motion and Controls Division
Switch OptionNOMaximum Operating Temperature105
Maximum Switching Voltage20Mounting Hole Diameter6.0 mm (x2)
Sensor TypeTip/tilt
