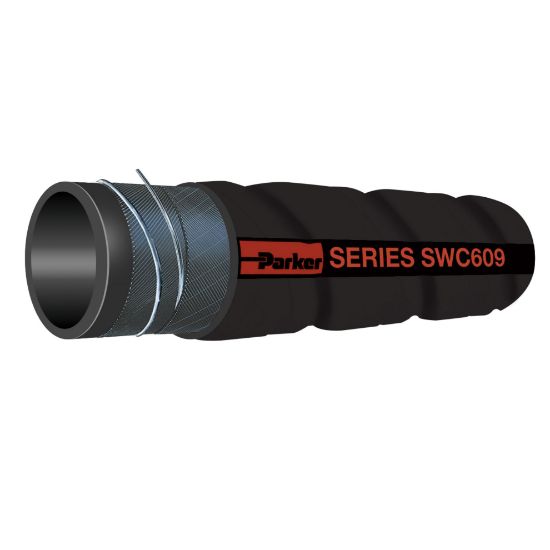

SWC609-2000 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	270 in stock

SKU SWC609-2000

$19.83/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	2	Inside Diameter	50.8 mm
Minimum Bend Radius	2 inch	Vacuum Pressure Rating	737 mm-Hg
Hose Inner Tube Material	Black	Cover Structure	Corrugated
Maximum Operating Temperature	82 °C	Size	-32
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	17.2 bar
Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Nominal Hose Inside Diameter	50 mm
Cover Material	Nitrile	Outside Diameter	62.2 mm
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Weight	1 lb/ft
