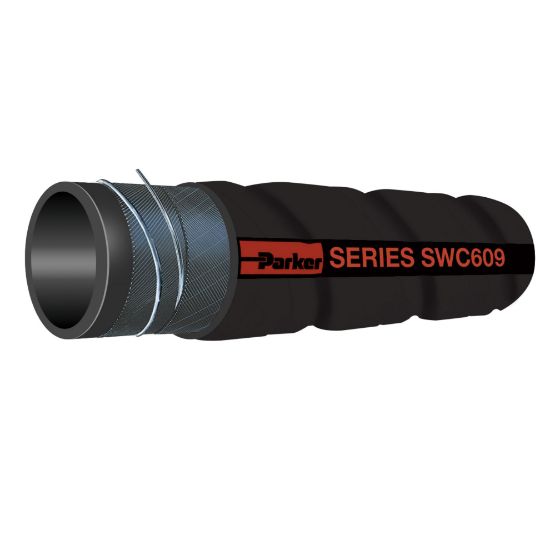

SWC609-4000 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	815 in stock

SKU SWC609-4000

$36.54/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	4	Hose Inner Tube Material	Nitrile
Maximum Operating Temperature	180 °F	Minimum Bend Radius	4 inch
Maximum Operating Pressure	10.3 bar	Minimum Operating Temperature	-40 °C
Outside Diameter	4.630 inch	Weight	3.59 kg/m
Cover Material	Nitrile	Size	-64
Vacuum Pressure Rating	737 mm-Hg	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Inside Diameter	101.6 mm	Nominal Hose Inside Diameter	100 mm
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Cover Structure	Corrugated
