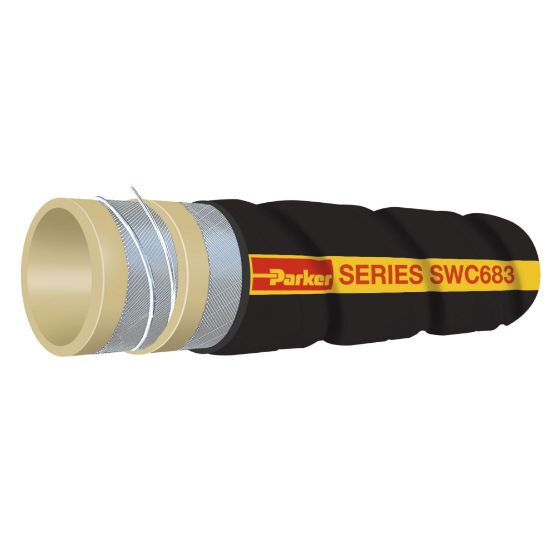

SWC683-2000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Name: SWC683-2000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC683-2000
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

72 in stock

Joplin, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SWC683-2000

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Color	Black	Maximum Operating Pressure	250 psi
Nominal Hose Inside Diameter	50 mm	Outside Diameter	65.1 mm
Media	Chemicals	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Weight	1.56 kg/m	Vacuum Pressure Rating	737 mm-Hg
Cover Structure	Corrugated	Minimum Bend Radius	101.6 mm
Inside Diameter	50.8 mm	Hose Inner Tube Material	Modified Cross Linked Polyethylene (MXLPE) (MXLPE)
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Size	-32
Maximum Operating Temperature	250 °F	Compatible Fitting	n/a
Minimum Operating Temperature	-40 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
