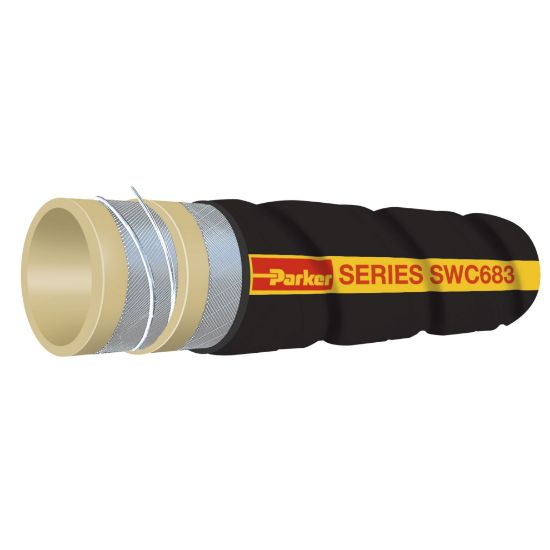

SWC683-2500 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU SWC683-2500

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	2-1/2	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Inside Diameter	2-1/2 inch	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Cover Structure	Corrugated	Maximum Operating Temperature	250 °F
Vacuum Pressure Rating	29 Inch-Hg	Minimum Operating Temperature	-40 °F
Outside Diameter	3.020 inch	Compatible Fitting	n/a
Minimum Bend Radius	5 inch	Media	Solvents
Nominal Hose Inside Diameter	65 mm	Maximum Operating Pressure	13.8 bar
Size	-40	Weight	1.47 lb/ft
Hose Inner Tube Material	Tan (MXLPE)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
