*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

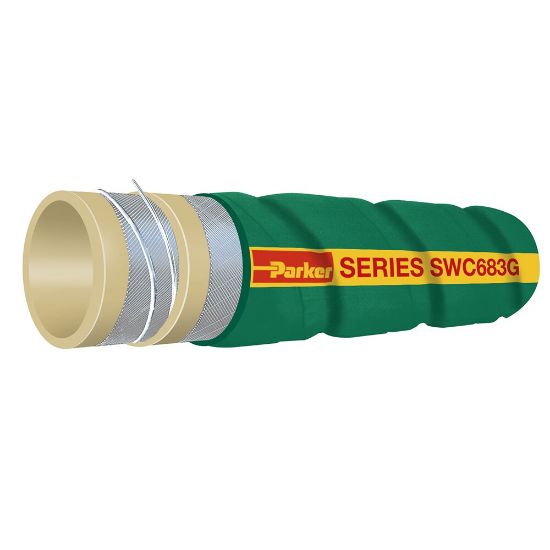

SWC683G-4000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	37 in stock

SKU SWC683G-4000

$41.42/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Green
Hose I.D. (inch)	4	Media	Chemicals
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Outside Diameter	117.5 mm
Size	-64	Nominal Hose Inside Diameter	100 mm
Inside Diameter	101.6 mm	Weight	3.87 kg/m
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Structure	Corrugated
Hose Inner Tube Material	Modified Cross Linked Polyethylene (MXLPE) (MXLPE)	Maximum Operating Temperature	250 °F
Vacuum Pressure Rating	29 Inch-Hg	Minimum Bend Radius	8 inch
Compatible Fitting	n/a	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	175 psi

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
