TKW131HCKCB2R1000

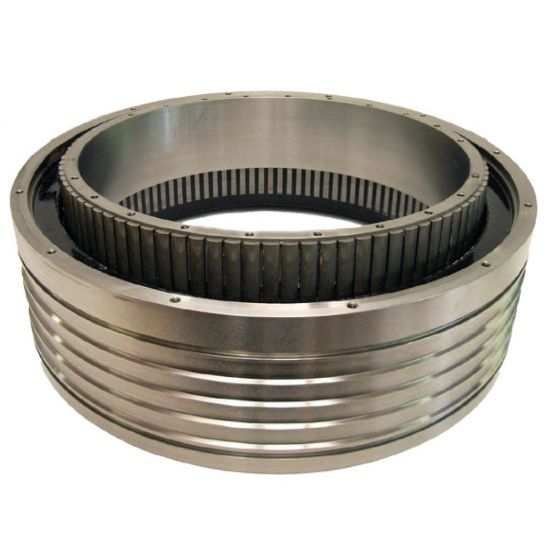

Parker TKW131HCKCB2R1000 | Torque Motor | Mounting Option Transportation Bridges On Cable Inlet Side | Rating IP00 | Compatible Parker Drive AC890SD

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU TKW131HCKCB2R1000

Products specifications

Attribute name	Attribute value
UOM	EA	Continuous Output Power	17.88 kW
Motor Pole Count	30	Standard	CE
Cooling Method	Water-Cooled (standard) [TKW] : Water Cooling	Input Voltage	400 to 480 VAC
Shaft Type	Hollow	Continuous Torque	604.5 lb-Inch
IP Rating	IP00	Peak Torque	1770 lb-in
Frame Size	230 mm, [13] : 130mm Shaft Height	Rated Speed	2500 rpm
Mounting Option	Transportation Bridges On Cable Inlet Side	Compatible Parker Drive	AC890SD
