Top-mounted Breathers and Filler Breathers - AB Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ingress of airborne contaminants into hydraulic systems can cause a number of costly issues, including increased wear on pumps and cylinders, decreased performance, shorter maintenance intervals, and added downtime.

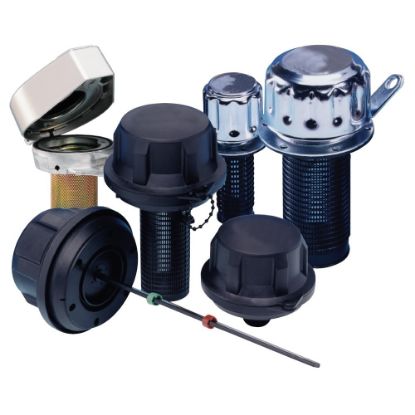

The Parker AB Series comprises a full range of top-mounted breathers and filler breathers designed to prevent this by keeping out harmful contaminants and allowing the tank / fluid reservoir to effectively breath during equipment operation.

Multiple configurations are available to meet the unique requirements of customers’ hydraulic systems, including:

Filler Breathers - Glass-filled nylon or plated metal steel. Multiple installation available including single hole, three hole, or six hole installation. Flow rates up 620 L/min (163 GMP).

Screw-on type Breathers - Glass-filled nylon or plated metal steel. Multiple connection types available. Flow rates up to 620 L/min (163 GPM). Dipsticks available with all options (two lengths and in packs of 10).

Lockable Fillers and Filler Breathers (metal) - Pressurized and unpressurized threaded types available. For added reservoir security and oil protection, certain metal filler breathers can be specified with a locking lug option.

AB Series breathers and filler breathers are ideally suited for equipment required to operate in environments laden with dirt and dust.

Benefits
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic circuits, while allowing sufficient airflow into and out of the fluid reservoir

• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life

Features:
• Molded in non-corrodible, glass-filled nylon – strong and light
• Filler breathers available with single hole, six hole, and three hole installation
• Screw-on breather range – G1/2 and G3/4 options
• Compact range – G1/4, G3/8, R1/2 and R3/4 options
• Metal filler breathers – pressurized and unpressurized threaded type
• Flange mounting type options
• Lockable options for reservoir security and oil protection

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Micron Rating	Seal Material	Flow Rate	Installation	Housing Material	Outside Diameter	Pressure Relief Valve Type	Features	Includes	Product Type	Strainer Type	Connection Type	For Fluid Type	Industry	Mounting Type	Filter Material
5491	Backordered	10 in stock	$18.75/each	EA	10 µm	Cork gasket	430 l/min	Tank hole mounted	Plated Mild Steel	76 mm	Un-Pressurised	Includes dipstick 355 mm	Includes dipstick 355mm	Filler Breather Cap	Without strainer	Replacement cap	Air	Marine	Tanktop	10µ abs. PU-foam
5561	Backordered	5 in stock	$95.25/each	EA	10 µm	Cork gasket	430 l/min	Tank hole mounted	Plated Mild Steel	76 mm	Un-Pressurised	-	Locking lug	Lockable Filler Breather	95 mm strainer	6 Hole Installation	Air	Agriculture	Tanktop	10µ abs. PU-foam
5884.10	Backordered	Backordered	$58.79/each	EA	5 µm	Cork gasket	1500 l/min	-	Plated Mild Steel	94 mm	Un-Pressurised	Spare element	Spare element	Breather Spin on element	-	-	Air	Oil and Gas	Tanktop	10µ abs. PU-foam
AB.1380.10	Backordered	Backordered	$39.44/each	EA	10 µm	Cork gasket	135 l/min	Tank hole mounted	Plated Mild Steel	45 mm	Un-Pressurised	Anti Splash Plate	-	Filler Breather	63 mm strainer	3 Hole Installation	Air	Mining	Tanktop	10µ abs. PU-foam
AB.1380.40	Backordered	Backordered	$45.75/each	EA	40 µm	Cork gasket	270 l/min	Tank hole mounted	Plated Mild Steel	45 mm	Un-Pressurised	-	-	Filler Breather	Without strainer	3 Hole Installation	Air	Oil and Gas	Tanktop	10µ abs. PU-foam
AB.1381.40	Backordered	Backordered	$75.88/each	EA	40 µm	No seal	720 l/min	Tank hole mounted	Plated Mild Steel	76 mm	Un-Pressurised	-	-	Air Breather	Without strainer	Push-on mounted	Air	Mining	Tanktop	10µ abs. PU-foam
AB.6821001.UC	Backordered	Backordered	POR	EA	10 µm	Nitrile	1150 l/min	Tank hole mounted	Glass-filled Nylon	92 mm	Un-Pressurised	Dipstick mountable	Dipstick mountable	Filler Breather	95 mm strainer	3 Clamp mounted	Air	Marine	Tanktop	10µ abs. PU-foam
AB.6821301.UC	Backordered	Backordered	POR	EA	10 µm	Nitrile	1150 l/min	Tank hole mounted	Glass-filled Nylon	92 mm	0.35 Bar	Dipstick mountable	Dipstick mountable	Filler Breather	95 mm strainer	3 Clamp mounted	Air	Agriculture	Tanktop	10µ abs. PU-foam
AB.687131.UC	Backordered	Backordered	POR	EA	10 µm	Nitrile	740 l/min	Srew-On	Glass-filled Nylon	70 mm	0.35 Bar	Dipstick mountable	Dipstick mountable	Breather	Without strainer	G3/4 male thread	Air	Forestry	Tanktop	10µ abs. PU-foam
AB.68918	Backordered	Backordered	$76.96/each	EA	10 µm	Nitrile	1000 l/min	Tank hole mounted	Glass-filled Nylon	76 mm	Un-Pressurised	-	-	Filler Breather	95 mm strainer	6 Hole Installation	Air	Mining	Tanktop	10µ abs. PU-foam
AB.98410201.UC	Backordered	Backordered	$62.17/each	EA	10 µm	Nitrile	620 l/min	Srew-On	Glass-filled Nylon	101 mm	Un-Pressurised	-	-	Filler Breather	Without strainer	G3/4 male thread	Air	Marine	Tanktop
AB.98412201.UC	Backordered	1 Limited Stock	$67.74/each	EA	10 µm	Nitrile	620 l/min	Srew-On	Glass-filled Nylon	101 mm	0.2 Bar	-	-	Filler Breather	Without strainer	G3/4 male thread	Air	Oil and Gas	Tanktop
AB116310	Backordered	15 in stock	$52.90/each	EA	10 µm	Cork gasket	430 l/min	Tank hole mounted	Plated Mild Steel	76 mm	Un-Pressurised	Anti Splash Plate	-	Filler Breather	95 mm strainer	6 Hole Installation	Air	Agriculture	Tanktop	10µ abs. PU-foam
AB68110	Backordered	Backordered	POR	EA	10 µm	Nitrile	185 l/min	Tank hole mounted	Glass-filled Nylon	51 mm	Un-Pressurised	Anti Splash Plate	-	Filler Breather	Without strainer	3 Hole Installation	Air	Forestry	Tanktop	10µ abs. PU-foam
AB68118	Backordered	Backordered	$63.72/each	EA	10 µm	Nitrile	185 l/min	Tank hole mounted	Glass-filled Nylon	51 mm	Un-Pressurised	Anti Splash Plate	-	Filler Breather	63,5 mm strainer	3 Hole Installation	Air	Agriculture	Tanktop	10µ abs. PU-foam
AB683101	Backordered	25 in stock	$106.47/each	EA	10 µm	No seal	175 l/min	Srew-On	Glass-filled Nylon	40 mm	Un-Pressurised	Anti Splash Plate	Pack of 10 pcs	Breather	-	G1/4 male thread	Air	Agriculture	Tanktop	10µ abs. PU-foam
AB685101	Backordered	2 Limited Stock	$47.81/each	EA	10 µm	Nitrile	450 l/min	Srew-On	Glass-filled Nylon	70 mm	Un-Pressurised	Anti Splash Plate	Dipstick mountable	Breather	-	G3/8 male thread	Air	Forestry	Tanktop	10µ abs. PU-foam
AB686101	Backordered	Backordered	$33.76/each	EA	10 µm	Nitrile	510 l/min	Srew-On	Glass-filled Nylon	70 mm	Un-Pressurised	Anti Splash Plate	Dipstick mountable	Breather	-	G1/2 male thread	Air	Agriculture	Tanktop	10µ abs. PU-foam
AB687101	Backordered	Backordered	$29.52/each	EA	10 µm	Nitrile	740 l/min	Srew-On	Glass-filled Nylon	70 mm	Un-Pressurised	Anti Splash Plate	Dipstick mountable	Breather	-	G3/4 male thread	Air	Forestry	Tanktop	10µ abs. PU-foam
AB68Y101	Backordered	Backordered	POR	EA	10 µm	No seal	215 l/min	Srew-On	Glass-filled Nylon	40 mm	Un-Pressurised	Anti Splash Plate	Pack of 10 pcs, Dipstick mountable	Breather	-	R1/2 male thread	Air	Agriculture	Tanktop	10µ abs. PU-foam
