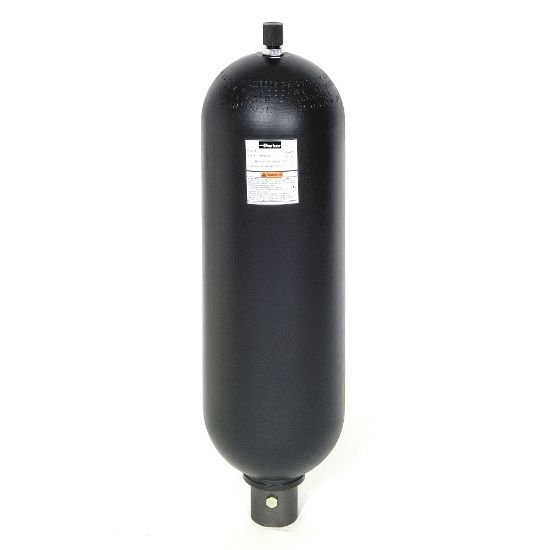

BT15B5UU01A1 - Transfer Barrier Accumulators - BT Series - (Americas)

Transfer Barrier accumulators provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU BT15B5UU01A1

$21,405.45/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Outlet Port Connection Type	NPT
Inlet Port Connection Type	NPT	Fluid Type	Oil Service
Elastomer Material	Nitrile	Inlet Port Size (inch)	3/4"
Outlet Port Size (inch)	2"	Volume (Gallons)	15 gallons
Maximum Operating Pressure (psi)	5,000 psi	Maximum Operating Pressure	344.7 bar
Specifications Met	CUTR	Body Material	Chrome-molybdenum Alloy Steel
Repairable	Bottom Repairable	Overall Length	1971.3 mm
Diameter	9.63 inch	Volume	56.7 L
