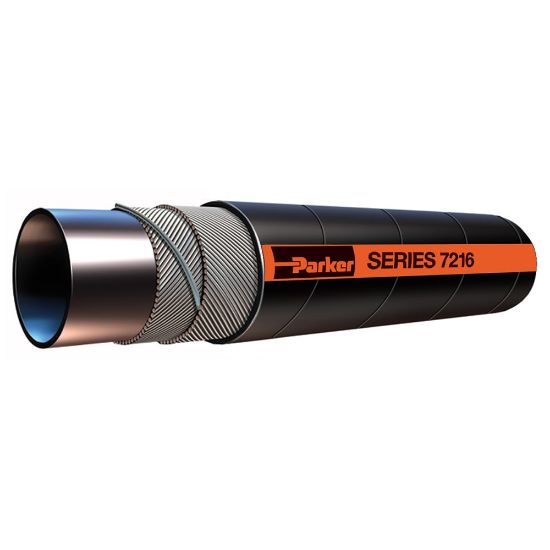

Picture of TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE - 7216-1502

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE - 7216-1502

Translite Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 150 psi.
Availability:
4 in stock
Springfield, MO4
SKU 7216-1502
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTColorBlack
Hose I.D. (inch)1-1/2Minimum Operating Temperature-40 °F
DivisionHose Products DivisionSpecifications MetN/A
Design Factor4:1Minimum Bend Radius4 inch
Maximum Operating Pressure10.3 barInside Diameter1-1/2 inch
Size-24MediaLubricants (Oils)
Hose Inner Tube MaterialNitrileMaximum Operating Temperature82 °C
Nominal Hose Inside Diameter40 mmApplicationPetroleum Transfer
Weight1.24 kg/mCover MaterialNitrile
Outside Diameter1.990 inchVacuum Pressure Rating737 mm-Hg
Hose Reinforcement MaterialMultiple Plies of Textile with Wire Helix
