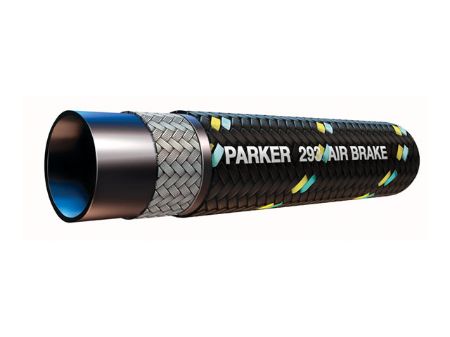

Transportation Air Brake Hose 450-500 PSI - 293 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 293 hose is a transportation air brake hose that has a pressure range of 450-500 PSI and is reinforced with one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 293 hose is designed, built, and tested to meet D.O.T. performance specifications. Sizes range from 3/16” to 7/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 450-500 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AI certification
• Compatible with temperatures up to 302 ͦF
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 21 series fittings
• 23 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Maximum Operating Temperature | Inside Diameter | Minimum Bend Radius | Maximum Operating Pressure | Nominal Hose Inside Diameter | Media | Hose Inner Tube Material | Hose Reinforcement Material | Specifications Met | Compatible Fitting | Weight | Cover Color | Cover Material | Outside Diameter | Minimum Operating Temperature | Pkg Qty | Inner Diameter | Material | Mating Fitting Series | Pkg Qty/UOM | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Application | Hose Pressure Range | Hose Category | Working Pressure Range | Mating End Fitting Series | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 293-10 | Backordered | 178 in stock | $14.96/foot | FT | FT | -10 | 302 °F | 1/2 inch | 2 inch | 450 psi | 12 mm | Petroleum Hydraulic Fluids | PKR® Rubber | Braid of Fiber | SAE J1402, Class AI | 23 Series | 0.2 lb/ft | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 21.1 mm | -50 °C | 1 | 0.5 Inch | Rubber | 26, 21, 23 | 1 FT | 450 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-12 | Backordered | 772 in stock | $17.49/foot | FT | FT | -12 | 150 °C | 16 mm | 2-1/2 inch | 3.1 MPa | 16 mm | Lubricants | PKR® Rubber | Braid of Fiber | SAE J1402, Class AI | 26 Series | 0.22 lb/ft | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 24.3 mm | -58 °F | 225 | 0.625 Inch | Rubber | 26, 21, 23 | 225 FT | 450 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-16 | Backordered | 3 in stock | $18.62/foot | FT | FT | -16 | 302 °F | 7/8 inch | 3-1/4 inch | 450 psi | 22 mm | Coolants | PKR® Rubber | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AI Air Brake | 23 Series | 0.25 lb/ft | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 30.6 mm | -50 °C | 140 | 0.875 Inch | Rubber | 26, 21, 23 | 140 FT | 450 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | Transportation | Low | Transportation | 250 to 499 PSI (17 to 34 bar) | 26, 21, 23 | 293 | |
| 293-4 | Backordered | Backordered | $9.52/foot | FT | FT | -4 | 150 °C | 3/16 inch | 15 mm | 3.5 MPa | 5 mm | Fuels - Check fuel type with our catalogue chart. | PKR® Rubber | 1 Braid of Fiber | SAE J1402, Class AI | 23 Series | 0.1 lb/ft | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 0.490 inch | -58 °F | 1 | 0.188 Inch | Rubber | 26, 21, 23 | 1 FT | 500 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 | |
| 293-6 | Backordered | Backordered | $10.75/foot | FT | FT | -6 | 150 °C | 8 mm | 25 mm | 3.5 MPa | 8 mm | Fuels - Check fuel type with our catalogue chart. | PKR® Rubber | 1 Braid of Fiber | SAE J1402, Class AI | 21 Series | 0.15 lb/ft | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 0.620 inch | -58 °F | 300 | 0.313 Inch | Rubber | 26, 21, 23 | 300 FT | 500 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 | |
| 293-8 | Backordered | Backordered | $11.74/foot | FT | FT | -8 | 302 °F | 10 mm | 1-1/2 inch | 500 psi | 10 mm | Lubricants | PKR® Rubber | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AI Air Brake | 26 Series | 0.27 kg/m | Black with Gold and Teal accent | Polyamide (PA) Abrasion Resistant | 18.7 mm | -50 °C | 225 | 0.406 Inch | Rubber | 26, 21, 23 | 225 FT | 500 PSI (30 bar) | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | Transportation | Low | Transportation | 500 to 999 PSI (34 to 69 bar | 26, 21, 23 | 293 |
