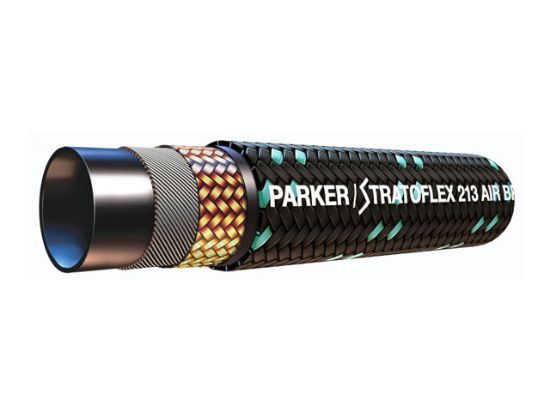

Picture of Transportation Hose 175-2000 PSI - 213 Hose - 213-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transportation Hose 175-2000 PSI - 213 Hose - 213-10

Parker's 213 hose is a transportation hose that has a pressure range of 175-2000 PSI and is reinforced with one fiber braid and one steel braid making it excellent for rugged transportation applications.
Availability:
Backordered
SKU 213-10
$15.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-10
Maximum Operating Temperature302 °FDivisionHose Products Division
Inside Diameter1/2 inchMaximum Operating Pressure7 MPa
Nominal Hose Inside Diameter12 mmCompatible Fitting26 Series
MediaFuels (Diesel Fuels & Antifreeze Solutions)ApplicationAntifreeze Solutions
Hose Reinforcement Material1 Braid of FiberHose Inner Tube MaterialPKR® Rubber
Specifications MetD.O.T. FMVSS 106, Class AI Air BrakeMinimum Operating Temperature-45 °C
Weight0.33 kg/mCover ColorBlack with Teal accent
Outside Diameter0.830 inchMinimum Bend Radius55 mm
Pkg Qty200Inner Diameter0.5 Inch
UOMFTMaterialRubber
Pkg Qty/UOM200 FTWorking Pressure1000 PSI (70 bar)
Mating Fitting Series26, 21, 23Parker GroupFluid Connector
Inch/MetricInchParker DivisionHose Products
Inner Diameter0.5 InchInner Diameter Inch/mmInch
MaterialRubberWorking Pressure Range1000 to 1999 PSI (69 to 138 bar)
Hose Pressure RangeLowHose CategoryTransportation
Series213ApplicationMarine Fuel and Engine
Mating End Fitting Series26, 21, 23
