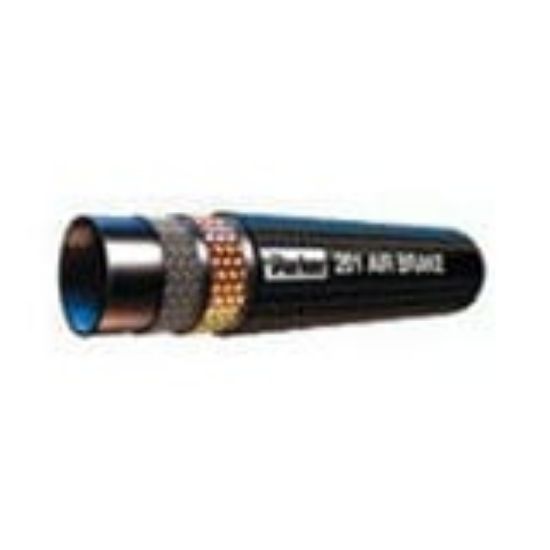

201-12 - Transportation Hose 200-3000 PSI - 201 Hose

Parker’s 201 hose is a transportation hose that has a pressure range of 200-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications.

Availability:	Backordered
Partner Available:	721 in stock

SKU 201-12

$18.23/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Maximum Operating Temperature	150 °C	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	1500 psi	Minimum Bend Radius	6-1/2 inch
Media	Petroleum Hydraulic Fluids (Petroleum Base)	Inside Diameter	5/8 inch
Outside Diameter	1.080 inch	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	16 mm	Compatible Fitting	26 Series
Hose Cover Type	Fiber Cover	Hose Reinforcement Material	1 Braid of Fiber and 1 Braid of Steel Wire
Weight	0.60 kg/m	Specifications Met	D.O.T. FMVSS 106, Class AII Air Brake

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
