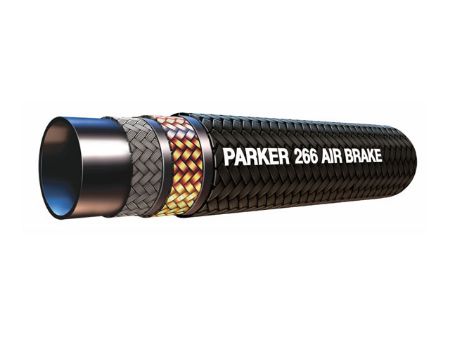

Transportation Hose 250-2000 PSI - 266 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 266 hose is a transportation hose that has a pressure range of 250-2000 PSI and is reinforced with one fiber braid and one steel braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 266 hose is designed, built, and tested to meet D.O.T. performance specifications. Sizes range from 3/16” to 1-3/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 250-2000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AII certification
• Compatible with temperatures up to 302 ͦF
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Maximum Operating Temperature | Minimum Bend Radius | Inside Diameter | Nominal Hose Inside Diameter | Compatible Fitting | Outside Diameter | Hose Reinforcement Material | Specifications Met | Minimum Operating Temperature | Hose Inner Tube Material | Media | Maximum Operating Pressure | Weight | Pkg Qty | Inner Diameter | Material | Mating Fitting Series | Pkg Qty/UOM | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Mating End Fitting Series | Hose Category | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 266-10 | Backordered | 169 in stock | $17.14/foot | FT | FT | -10 | 150 °C | 2-1/4 inch | 12.5 mm | 12 mm | 26 Series | 0.920 inch | 1 Braid of Fiber and 1 Braid of Steel Wire | SAE J1402, Class AII | -48 °C | PKR® Rubber | Fuels - Check fuel type with our catalogue chart. | 1250 psi | 0.38 lb/ft | 200 | 0.5 Inch | Rubber | 26, 20, 22 | 200 FT | 1250 PSI (90 bar) | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-12 | Backordered | 27 in stock | $23.13/foot | FT | FT | -12 | 150 °C | 2-3/4 inch | 16 mm | 16 mm | 26 Series | 27.4 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | -48 °C | PKR® Rubber | Lubricants | 5.2 MPa | 0.42 lb/ft | 180 | 0.625 Inch | Rubber | 26, 20, 22 | 180 FT | 750 PSI (50 bar) | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-20 | 44 in stock | 6 in stock | $31.38/foot | FT | FT | -20 | 302 °F | 4-1/2 inch | 1-1/8 inch | 29 mm | 22 Series | 38.4 mm | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AII Air Brake | -48 °C | PKR® Rubber | Lubricants | 2.1 MPa | 0.76 kg/m | 50 | 1.125 Inch | Rubber | 26, 20, 22 | 50 FT | 300 PSI (20 bar) | Fluid Connector | Inch | Hose Products | 1.125 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-24 | 98 in stock | 545 in stock | $35.48/foot | FT | FT | -24 | 150 °C | 140 mm | 35 mm | 35 mm | 20 Series | 55.4 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | SAE J1402, Class AII | -55 °F | PKR® Rubber | Fuels - Check fuel type with our catalogue chart. | 250 psi | 0.68 lb/ft | 125 | 1.375 Inch | Rubber | 26, 20, 22 | 125 FT | 250 PSI (17 bar) | Fluid Connector | Inch | Hose Products | 1.375 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-4 | Backordered | 363 in stock | $11.56/foot | FT | FT | -4 | 302 °F | 20 mm | 3/16 inch | 5 mm | 22 Series | 13.2 mm | 1 Braid of Fiber | SAE J1402, Class AII | -48 °C | PKR® Rubber | Fuels - Check fuel type with our catalogue chart. | 2000 psi | 0.22 kg/m | 350 | 0.188 Inch | Rubber | 26, 20, 22 | 350 FT | 2000 PSI (140 bar) | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-5 | Backordered | 137 in stock | $13.03/foot | FT | FT | -5 | 302 °F | 1 inch | 1/4 inch | 6 mm | 20 Series | 0.580 inch | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AII Air Brake | -48 °C | PKR® Rubber | Fuels - Check fuel type with our catalogue chart. | 10.5 MPa | 0.16 lb/ft | 325 | 0.25 Inch | Rubber | 26, 20, 22 | 325 FT | 1500 PSI (100 bar) | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-6 | Backordered | 72 in stock | $13.03/foot | FT | FT | -6 | 302 °F | 1-1/4 inch | 8 mm | 8 mm | 20 Series | 17.2 mm | 1 Braid of Fiber | D.O.T. FMVSS 106, Class AII Air Brake | -55 °F | PKR® Rubber | Lubricants | 10.5 MPa | 0.23 lb/ft | 300 | 0.313 Inch | Rubber | 26, 20, 22 | 300 FT | 1500 PSI (100 bar) | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 | |
| 266-8 | Backordered | 628 in stock | $14.60/foot | FT | FT | -8 | 150 °C | 1-3/4 inch | 13/32 inch | 10 mm | 20 Series | 19.5 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | D.O.T. FMVSS 106, Class AII Air Brake | -48 °C | PKR® Rubber | Lubricants | 8.7 MPa | 0.39 kg/m | 250 | 0.406 Inch | Rubber | 26, 20, 22 | 250 FT | 1250 PSI (90 bar) | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 266 |
