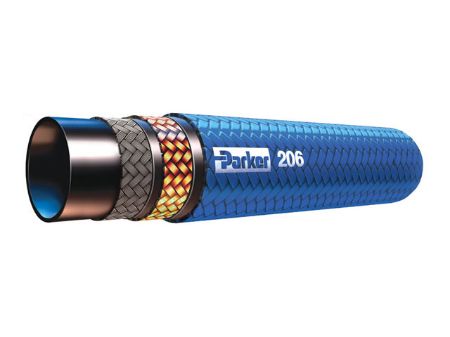

Transportation Hose 350-3000 PSI - 206 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 206 hose is a transportation hose that has a pressure range of 350-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 206 hose is designed, built, and tested to meet SAE J517 100R5 / SAE J1402 AII / DOT FMVSS 106 AIR BRAKE - AII performance specifications. Sizes range from 3/16” to 2-3/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 350-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Maximum Operating Temperature | Inside Diameter | Minimum Bend Radius | Cover Color | Media | Nominal Hose Inside Diameter | Compatible Fitting | Hose Reinforcement Material | Weight | Specifications Met | Maximum Operating Pressure | Minimum Operating Temperature | Cover Material | Outside Diameter | Hose Inner Tube Material | Pkg Qty | Inner Diameter | Material | Working Pressure | Mating Fitting Series | Pkg Qty/UOM | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Mating End Fitting Series | Hose Category | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 206-10 | Backordered | 1876 in stock | $20.92/foot | FT | FT | -10 | 302 °F | 1/2 inch | 4 inch | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 12 mm | 26 Series | 1 Braid of Fiber and 1 Braid of Steel Wire | 0.55 kg/m | SAE 100R5 | 12.2 MPa | -55 °F | Braid of Fiber | 23 mm | PKR® Rubber | 200 | 0.875 Inch | Rubber | 1750 PSI (120 bar) | 26, 20, 22 | 200 FT | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-12 | Backordered | 1721 in stock | $26.70/foot | FT | FT | -12 | 302 °F | 16 mm | 100 mm | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 16 mm | 22 Series | Braid of Fiber | 0.60 kg/m | SAE 100R5 | 10.5 MPa | -48 °C | Braid of Fiber | 1.080 inch | PKR® Rubber | 180 | 0.5 Inch | Rubber | 1500 PSI (100 bar) | 26, 20, 22 | 180 FT | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-16 | Backordered | 4498 in stock | $30.49/foot | FT | FT | -16 | 150 °C | 7/8 inch | 100 mm | Blue | Fuels (Diesel Fuels & Antifreeze Solutions) | 22 mm | 26 Series | Braid of Fiber | 0.46 lb/ft | D.O.T. FMVSS 106, Class AII Air Brake | 800 psi | -55 °F | Braid of Fiber | 1.230 inch | PKR® Rubber | 150 | 0.875 Inch | Rubber | 800 PSI (60 bar) | 26, 20, 22 | 150 FT | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-20 | 37 in stock | 1863 in stock | $38.65/foot | FT | FT | -20 | 302 °F | 29 mm | 140 mm | Blue | Lubricants (Oils) | 29 mm | 22 Series | 1 Braid of Fiber and 1 Braid of Steel Wire | 0.51 lb/ft | D.O.T. FMVSS 106, Class AII Air Brake | 4.3 MPa | -55 °F | Braid of Fiber | 1.5 inch | PKR® Rubber | 50 | 1.125 Inch | Rubber | 625 PSI (40 bar) | 26, 20, 22 | 50 FT | Fluid Connector | Inch | Hose Products | 1.125 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-24 | 6 in stock | 1951 in stock | $46.29/foot | FT | FT | -24 | 302 °F | 1-3/8 inch | 190 mm | Blue | Lubricants (Oils) | 35 mm | 20 Series | Braid of Fiber | 1.01 kg/m | SAE J1402, Class AII | 500 psi | -55 °F | Braid of Fiber | 1.750 inch | PKR® Rubber | 125 | 1.375 Inch | Rubber | 500 PSI (30 bar) | 26, 20, 22 | 125 FT | Fluid Connector | Inch | Hose Products | 1.375 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-32 | Backordered | 867 in stock | $60.14/foot | FT | FT | -32 | 302 °F | 46 mm | 13-1/4 inch | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 46 mm | 20 Series | Braid of Fiber | 1.32 kg/m | SAE 100R5 | 350 psi | -48 °C | Braid of Fiber | 2.220 inch | PKR® Rubber | 66 | 1.813 Inch | Rubber | 350 PSI (20 bar) | 26, 20, 22 | 66 FT | Fluid Connector | Inch | Hose Products | 1.813 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-4 | Backordered | 2529 in stock | $15.30/foot | FT | FT | -4 | 150 °C | 5 mm | 3 inch | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 5 mm | 20 Series | 1 Braid of Fiber and 1 Braid of Steel Wire | 0.15 lb/ft | SAE 100R5 | 3000 psi | -48 °C | Braid of Fiber | 13 mm | PKR® Rubber | 350 | 0.188 Inch | Rubber | 3000 PSI (210 bar) | 26, 20, 22 | 350 FT | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-40 | Backordered | 30 in stock | $85.50/foot | FT | FT | -40 | 150 °C | 2-3/8 inch | 610 mm | Blue | Fuels (Diesel Fuels & Antifreeze Solutions) | 60 mm | 20 Series | Braid of Fiber | 1.31 lb/ft | SAE J1402, Class AII | 350 psi | -55 °F | Braid of Fiber | 2.880 inch | PKR® Rubber | 60 | 2.375 Inch | Rubber | 350 PSI (20 bar) | 26, 20, 22 | 60 FT | Fluid Connector | Inch | Hose Products | 2.375 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-5 | Backordered | 35 in stock | $39.85/foot | FT | FT | -5 | 150 °C | 6.3 mm | 85 mm | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 6 mm | 26 Series | 1 Braid of Fiber and 1 Braid of Steel Wire | 0.27 kg/m | D.O.T. FMVSS 106, Class AII Air Brake | 21 MPa | -55 °F | Braid of Fiber | 0.580 inch | PKR® Rubber | 325 | 0.25 Inch | Rubber | 3000 PSI (210 bar) | 26, 20, 22 | 325 FT | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-6 | Backordered | 1810 in stock | $16.82/foot | FT | FT | -6 | 302 °F | 5/16 inch | 90 mm | Blue | Petroleum Hydraulic Fluids (Petroleum Base) | 8 mm | 26 Series | Braid of Fiber | 0.23 lb/ft | SAE J1402, Class AII | 15.7 MPa | -48 °C | Braid of Fiber | 17 mm | PKR® Rubber | 300 | 0.313 Inch | Rubber | 2250 PSI (160 bar) | 26, 20, 22 | 300 FT | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-8 | Backordered | 2348 in stock | $17.74/foot | FT | FT | -8 | 150 °C | 10 mm | 3-1/2 inch | Blue | Lubricants (Oils) | 10 mm | 22 Series | Braid of Fiber | 0.40 kg/m | SAE 100R5 | 14 MPa | -48 °C | Braid of Fiber | 0.770 inch | PKR® Rubber | 250 | 0.406 Inch | Rubber | 2000 PSI (140 bar) | 26, 20, 22 | 250 FT | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 |
