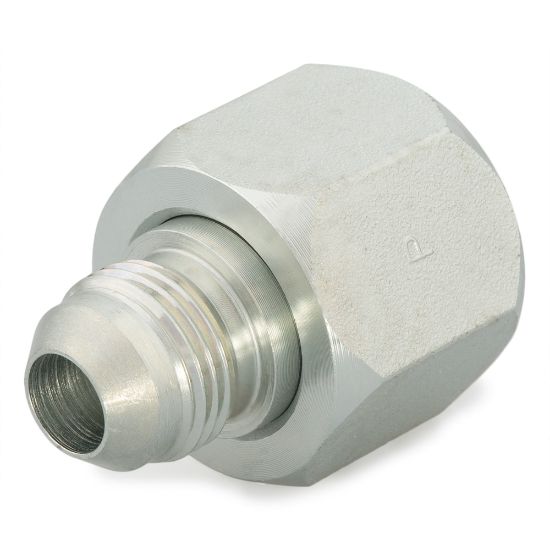

Picture of 10-4 TRTXN-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10-4 TRTXN-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Backordered
Estimated Lead Time: 75 days
Partner Available:Backordered
SKU 10-4 TRTXN-SS
$128.80/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialStainless Steel
Connection 4 SizenaDimensional Weight0.07913669064748201 lb
Maximum Dynamic Pressure6000 psiShapeStraight
Connection Type37° FlareO-Ring Materialna
Specifications MetSAE J514Connection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 3 SizenaConnection 2 SizeMale 37° Flare
Connection 1 SizeFemale 37° Flare with Large NutConnection 2 Tube Outside Diameter6 mm
