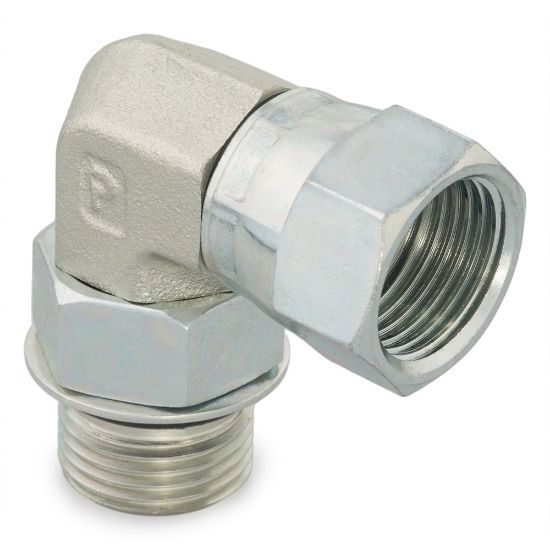

10 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: 10 AOEX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 AOEX6-S
Price: 33.19 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

8 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10 AOEX6-S

$33.19/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Connection Type	37° Flare	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Shape	90° Elbow
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Female 37° Flare Swivel	Connection 2 Size	Male SAE-ORB
Connection 3 Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
