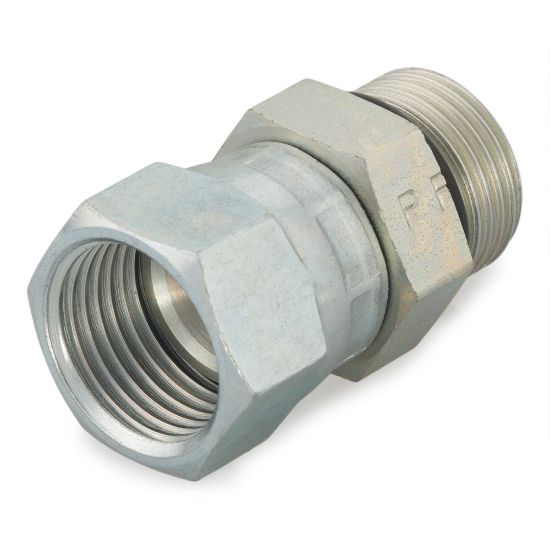

Picture of 10 F65OX-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10 F65OX-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Backordered
Estimated Lead Time: 75 days
Partner Available:Backordered
SKU 10 F65OX-SS
$151.27/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialStainless Steel
Connection TypeTube to SAE-ORBConnection 4 Sizena
Specifications MetSAE J514Maximum Dynamic Pressure6000 psi
Connection 4 Tube Outside DiameternaShapeStraight
Connection 1 SizeFemale 37° Flare SwivelConnection 2 SizeMale SAE-ORB
Connection 3 SizenaConnection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter5/8 inch
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
O-Ring Material90 Durometer Nitrile
