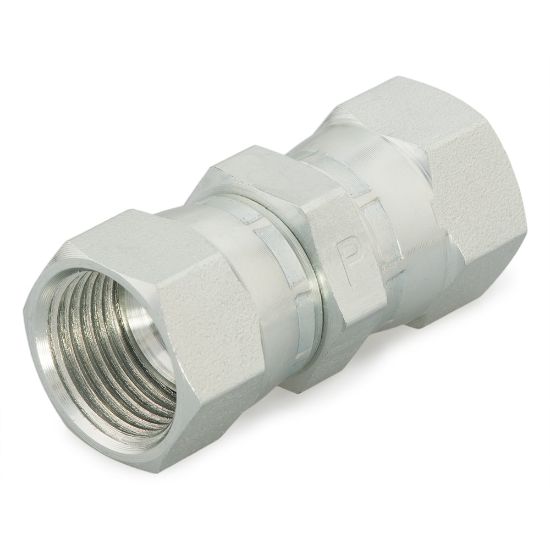

Picture of Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 HX6-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 HX6-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
12 in stock
Kansas City, KS5
Springfield, MO2
Joplin, MO2
COLUMBIA, MO1
Peoria, IL1
Decatur, IL1
SKU 10 HX6-S
$54.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelConnection 4 Sizena
Dimensional Weight0.07913669064748201 lbMaximum Dynamic Pressure5000 psi
ShapeStraightConnection Type37° Flare
O-Ring MaterialnaSpecifications MetSAE J514
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter14, 15, 16 mmConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 1 SizeFemale 37° Flare Swivel
Connection 3 SizenaConnection 2 SizeFemale 37° Flare Swivel
Connection 2 Tube Outside Diameter14, 15, 16 mm
